Ahorra $300.99
15,000 BTU RV Air Conditioner
$1,199.00 Precio regular $1,499.99 Precio de venta
Variants ID: 40776344633387

Key Features:

  • For large to medium-sized RVs: 250 sq. ft
  • Cooling and heating capabilities
  • Industry-leading EER of 8.5
  • Designed for a standard-size vent of 14.25'' × 14.25''
  • Noise level as low as 43dB

    PERFORMANCE

    • Min/Max. Voltage: 103.5/126.5
    • EER(Btu/h)/w: 8.5
    • Cooling Capacity(Btu/h): 15000
    • Heating Capacity(Btu/h): 12000
    • Cooling Power Input(W): 1270
    • Heating Power Input(W): 1140
    • Est. Cooling Area (Sq. Ft.): 250
    • Rated Current(A): 12.5
    • Required Circuit Breaker(A): 15-20
    • Rated Input(W): 1550
    • Temperature Range (°F): 61-86
    • Noise Levell (H/M/L): 56/52/43 decibels
    • Air Flow (CFM) : 282/253/182

    DIMENSIONS & WEIGHTS



    Indoor Unit

    • Approximate Shipping Weight (lbs): 17.8
    • Approximate Net Weight (lbs): 12.1
    • Shipping Dimensions (W×H×D) (inches): 29.05×23.22×6.02
    • Unit Dimensions (W×H×D) (inches): 26.25×19.56×3.77

    Outdoor Unit

    • Approximate Shipping Weight (lbs): 116.9
    • Approximate Net Weight (lbs): 100.3
    • Shipping Dimensions (W×H×D) (inches): 45.23×30.94×14.76
    • Unit Dimensions (W×H×D) (inches): 42.40×28.34×12.16

    User Manual: click here

    Installation Guide: click here

    Tailored Comfort for All Seasons
    Whether it's scorching hot summers or chilly winters, with a cooling capacity of 3.5kW and a heating capacity of 3.8kW, it keeps you cosy in any season, making your RV living experience enjoyable year-round.

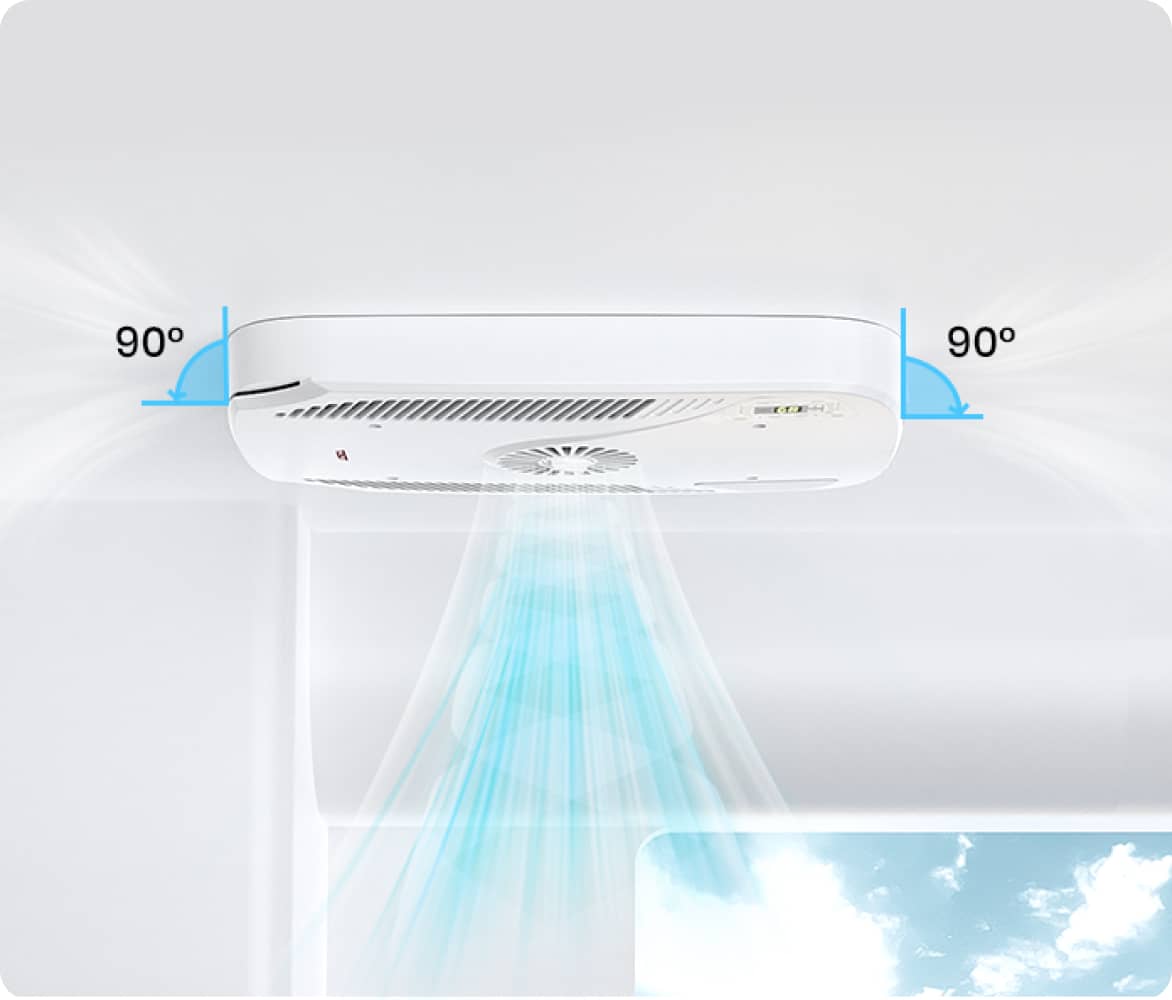

    For Medium to Large Class RVs*
    The 15K BTU unit offers powerful cooling for RVs up to 250 sq. ft, delivering airflow of 282/253/182 CFM, from high fan speed to low fan speed. Whether you have a compact camper or a spacious motorhome, this unit ensures efficient cooling and heating to keep you comfortable.
    Empowering RVs: Efficient AC Control
    With an incredibly low standby power consumption and startup power, users can effectively manage power consumption and confidently navigate power limitations.
    Standby power
    2w
    Rated power
    1550w
    Daily electricity consumption
    4.8kwh
    Flexible Power Solutions
    Our RV air conditioner with a rated power input of 1550W and 12.5A current is compatible with smaller generators like a 3kW model. Choose the perfect generator to suit your needs, ensuring a reliable power supply during your journey.
    Min 15A
    Circuit breaker
    25A
    Max. Over Current Protection
    10-13A
    Running current
    Advanced Performance
    Get higher efficiency and lower noise decibels thanks to the superior compressor.
    Leading Efficiency
    EER (Energy Efficiency Ratio)
    8.5
    Others
    6
    32% Quieter
    Noise level
     43 dB*
    Others
    58 dB
    Climate Control at Your Command
    Features a user-friendly control panel, giving you full control over temperature, fan speed, and airflow direction for optimal comfort.
    Convenient Installation
    Fits standard 14.25’’ x 14.25’’ rooftop vent openings for installation. 5.3-inch bolts for ceiling assembly are suitable for rooftops with 1.2-3.1 inch thickness.
    Specifications
    Performance
    Cooling Capacity
    15,500 Btu/h
    Heating Capacity
    12,000 Btu/h
    Energy Efficiency Ratio
    8.5 (Btu/h)/w
    Set Temp.  Range
    60°F to 86°F (16°C to 30°C)
    Operating Temp. Range
    33°F to 110°F (2°C to 43°C)
    Sound Level Pressure
    56/52/43 dB
    Refrigerant
    R410
    Certification
    ETL
    Warranty
    2-Year standard warranty
    Electrical
    Volts/Frequency
    AC 115V - DC 12V/60Hz
    Rated Input
    1550W
    Rated Current
    12.5A
    Max. Over Current Protection
    25A
    Starting Current
    45A
    Min. Current(MCA)
    17A
    Dimensions
    Indoor Unit Dimensions
    26.26”×19.57”×3.77”
    Rooftop Unit Dimensions
    42.40”×28.35”×12.17”
    Indoor Unit Net Weight
    12.1lbs
    Rooftop Unit Net Weight
    100.3lbs
