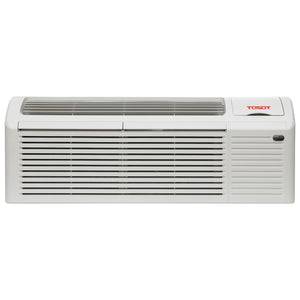

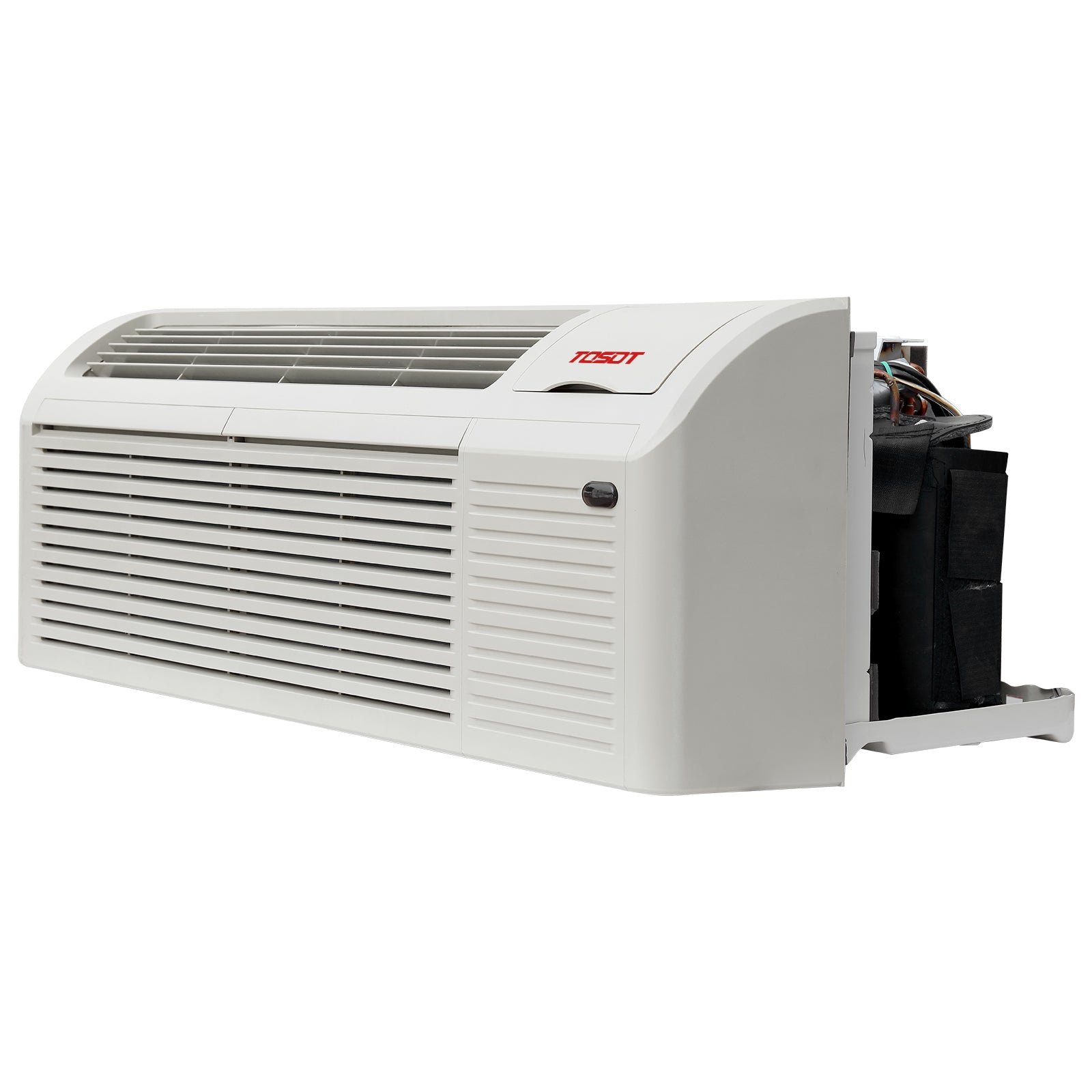

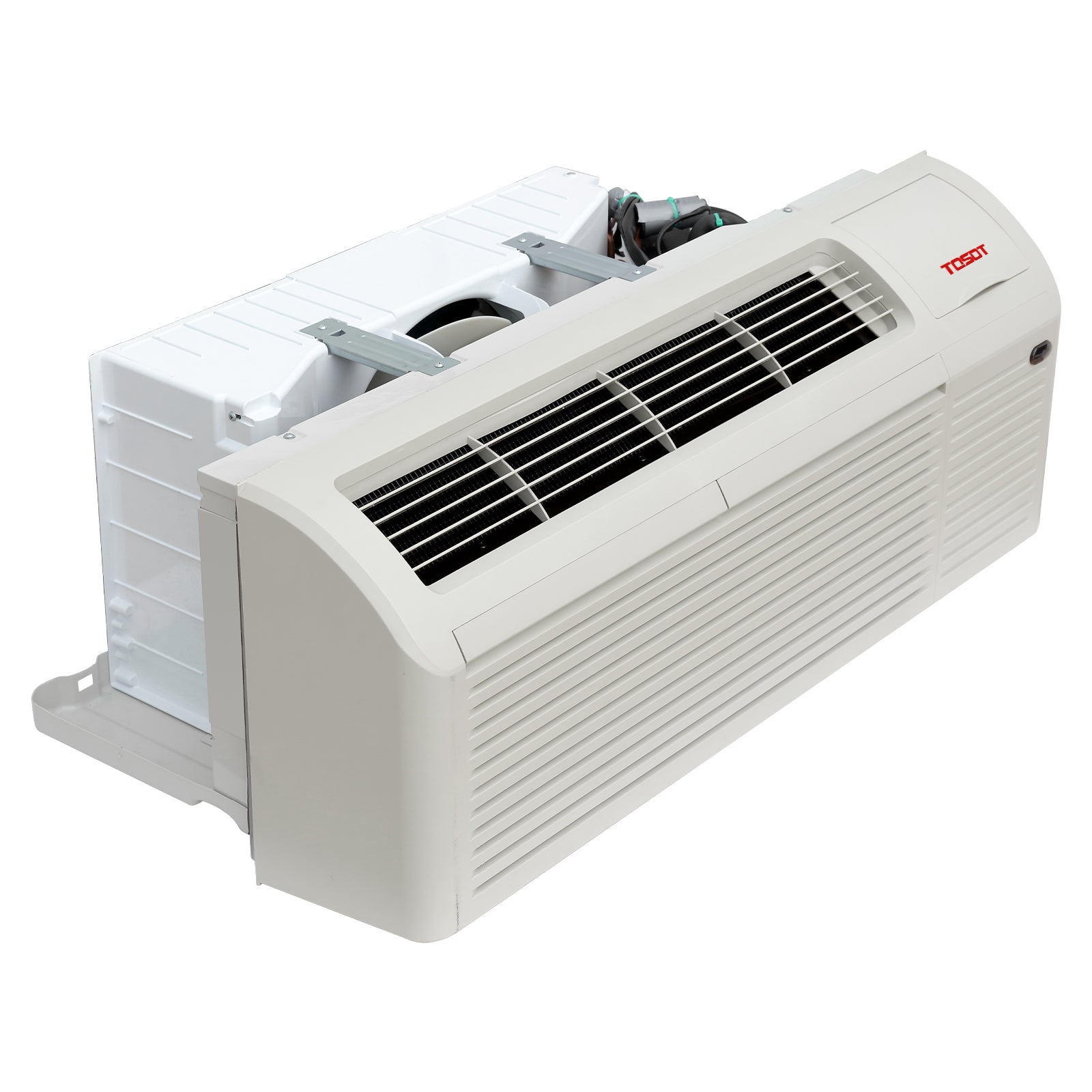

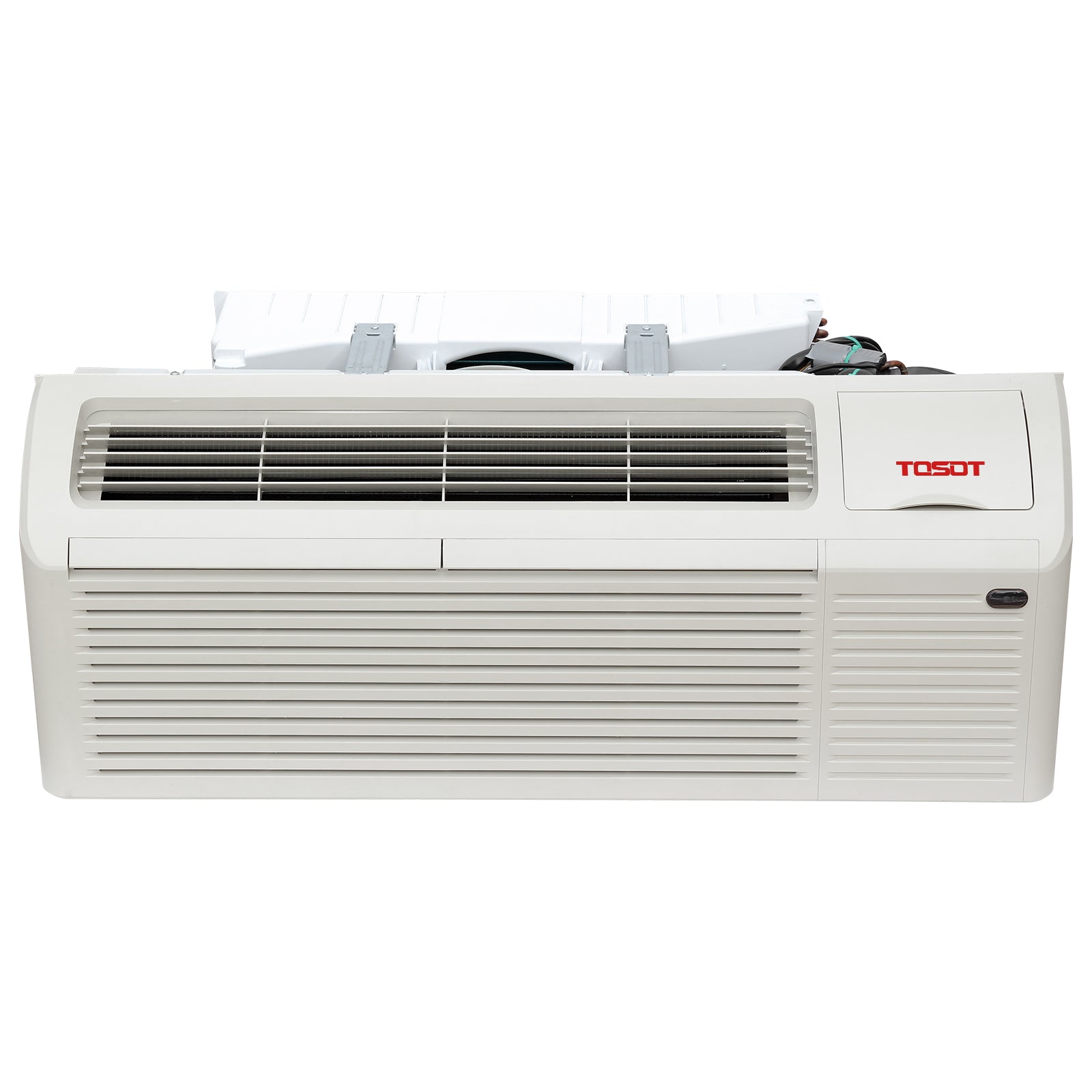

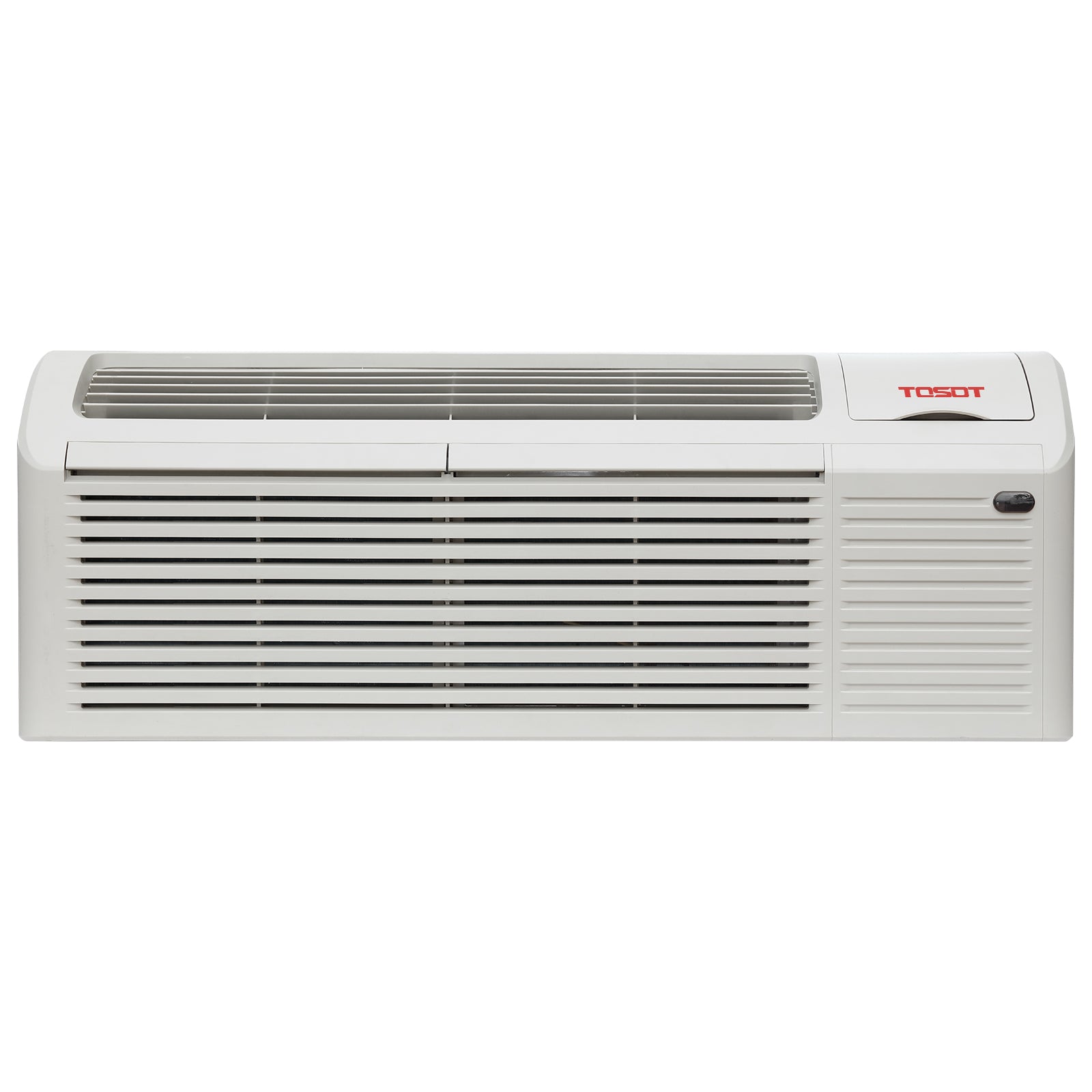

9,000 BTU PTAC Air Conditioner

Regular price $799.99
Sale price $799.99 Regular price $1,199.99

SKU: TST-PTAC-9

Key Features:

  • Energy-Efficient: EER 13.2, COP 13.4.
  • Extreme Weather Ready: Operates from 20℉ to 115℉.
  • Ventilation Function: Built-in for better air circulation.
  • Two Heating Options: heat pump and electric auxiliary heating
  • Standard Fit: 42” x 16” x 13 ¾” dimensions.
  • Quiet Operation: 53 dB at high speed.
  • Eco-Friendly: Uses R32 refrigerant.
  • Compatible with 24V thermostat
  • 5-Year Warranty: Long-lasting coverage.

w/grill
View full details
  • Features
  • Reviews

General Description

The TOSOT PTAC Packaged System features high efficiency with an above-average level of EER and COP ratings. This model provides easy control methods either via the control panel or through third-party 24V wall thermostats for optimal temperature settings. Instead of installing an entire HVAC system, the ease of installation and absence of ductwork make it a cost-effective choice for heating and cooling options in hotels, hospitals, senior residential facilities, apartments, and residential add-ons such as sunrooms.

Key Features

Four Seasons Climate Control: The 15,000 BTU TOSOT PTAC system provides sufficient cooling and heating power for a floor area of up to 850 sq. ft. Embedded with the dry function, you can set the unit to operate as a 50-pint dehumidifier on humid days.

Cost Saving: With an EER and COP rating of up to 13.0, our system is designed to maximize energy savings without compromising on performance. Plus, it's environmentally friendly thanks to the use of R32 refrigerant.

Lower Noise: Unlike other noisy compressors, the TOSOT PTAC operates at a whisper-quiet 51-53dB in high fan speed. No need to raise your voice to be heard over the AC; enjoy a peaceful night's sleep for you or your clients.

Harsh Conditions, No Problem: With the ability to operate in ambient temperatures up to 115°F for cooling and as low as -19°F for heating, the TOSOT PTAC handles extreme cold and hot weather with ease.

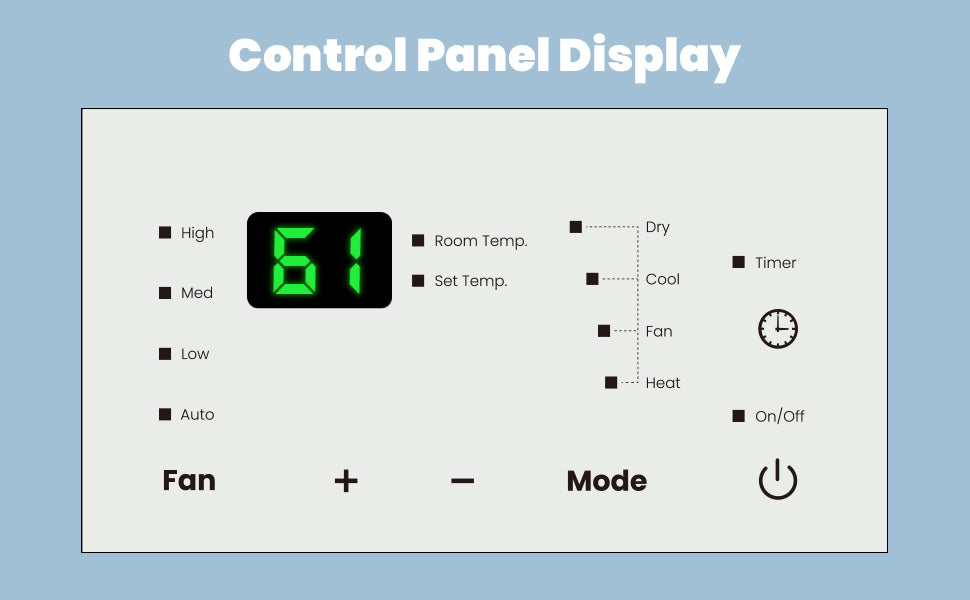

Various Control Methods: Take control of your comfort with ease. Use the intuitive digital display, or connect to third-party wall thermostats for added convenience.

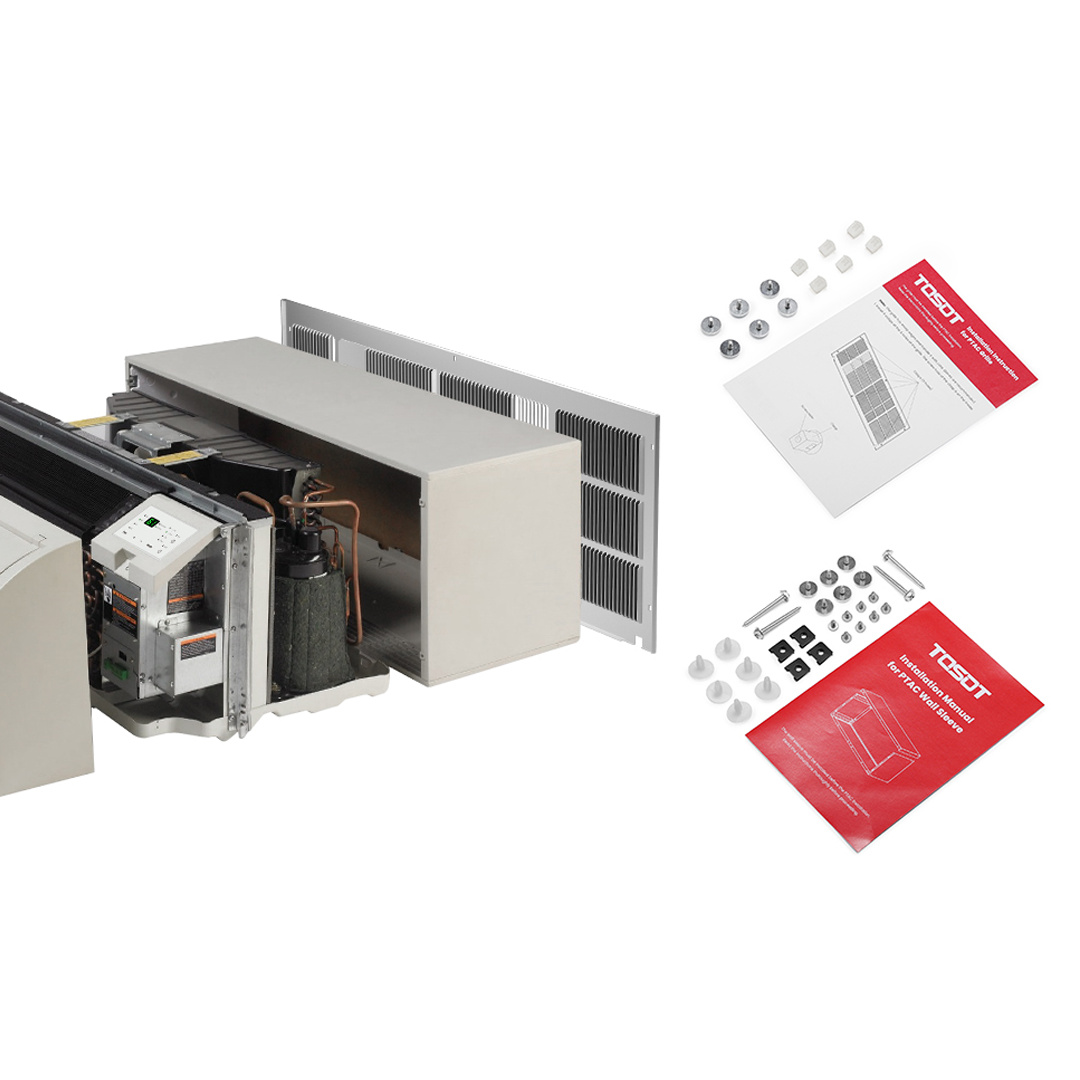

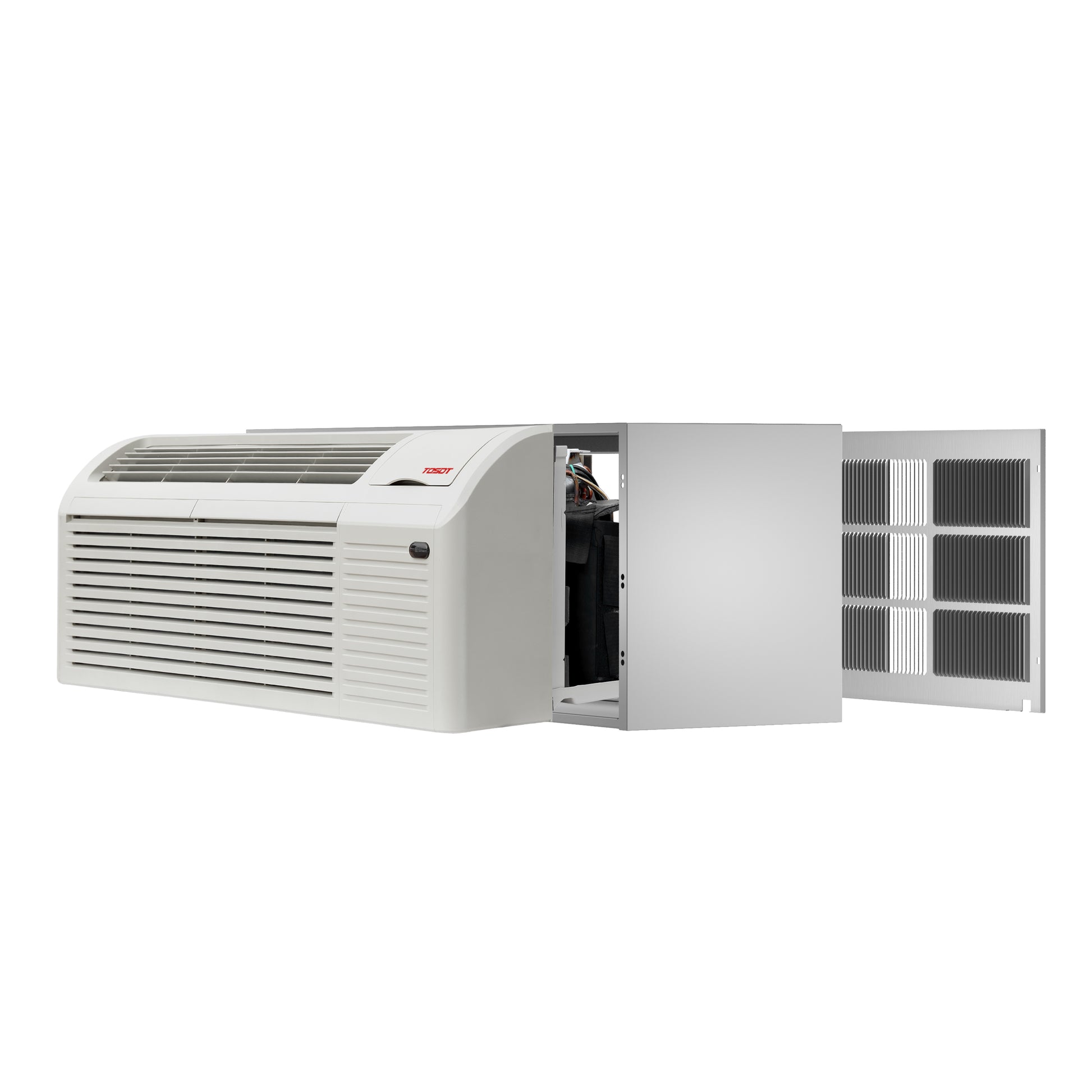

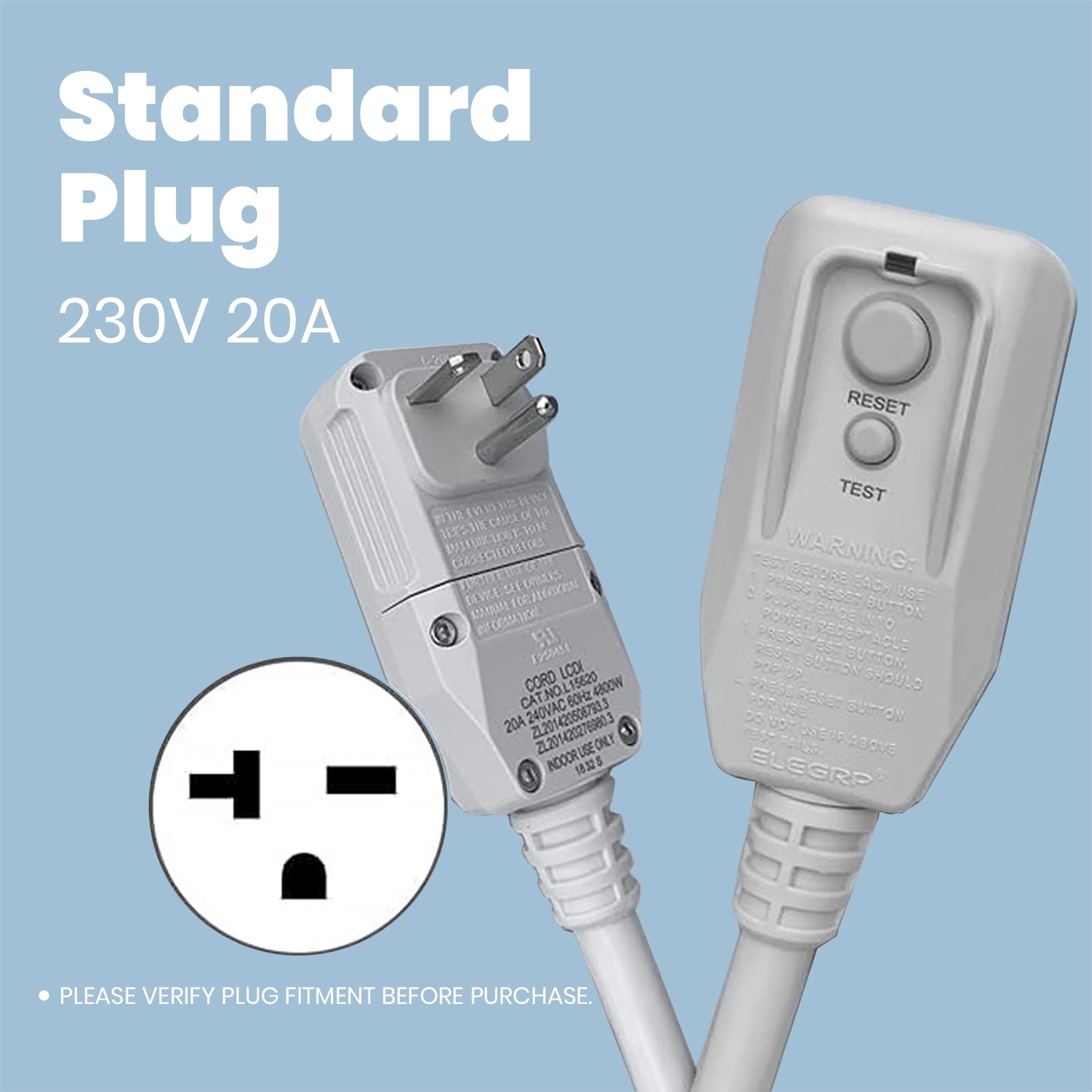

Easy Installation: The machine is designed for a 208/230V power circuit and comes with a 20A power plug equipped with a reset breaker. A sleeve and a rear grille are included in the package. It fits a standard PTAC Sleeve Size with product dimensions of 42’’ x 16’’ x 21’’ 1/2 (WxHxD).

Built to Last: Coated outdoor coils protect against corrosion, while freeze protection ensures safe operation even in extreme temperatures.

5-year Standard warranty and 6-month extended warranty for the whole unit

FAQ

How a PTAC differs from a window unit

In terms of efficiency and components tailored for commercial use, a PTAC stands apart from a window unit. While a window unit hangs externally and features side vents to cool its outside coil, a PTAC has solid sides and is mounted flush to the wall, with only the grill visible from the exterior. Notably, most window units lack heating functionality.

How do I save money when using PTAC?

PTAC units offer cost-saving advantages by selectively regulating the climate in specific rooms, thus avoiding the need to constantly operate a large-scale heating and cooling system found in commercial settings like hotels or hospitals.

These benefits extend beyond commercial spaces, as homeowners frequently install PTAC units in challenging-to-cool areas such as lofts or attics. Moreover, home additions like sunrooms benefit from the targeted cooling provided by PTAC units. Additionally, PTAC units are popular choices for heating and cooling tiny homes, eliminating the necessity for additional ductwork connected to the existing HVAC system.

Cost Saving for Every Season

Inverter Technology
Adjusts the compressor speed for more precise and stable temperature control, saving energy consumption by up to 30% compared to non-inverter units. Boasting an EER of 10.0 and COP of 13.4, and using R32 refrigerant, it’s a smart choice for both efficiency and the environment.
13.2 Btu/h EER
13.4 Btu/h COP
400 Sq. Ft Coverage
R32 Refrigerant

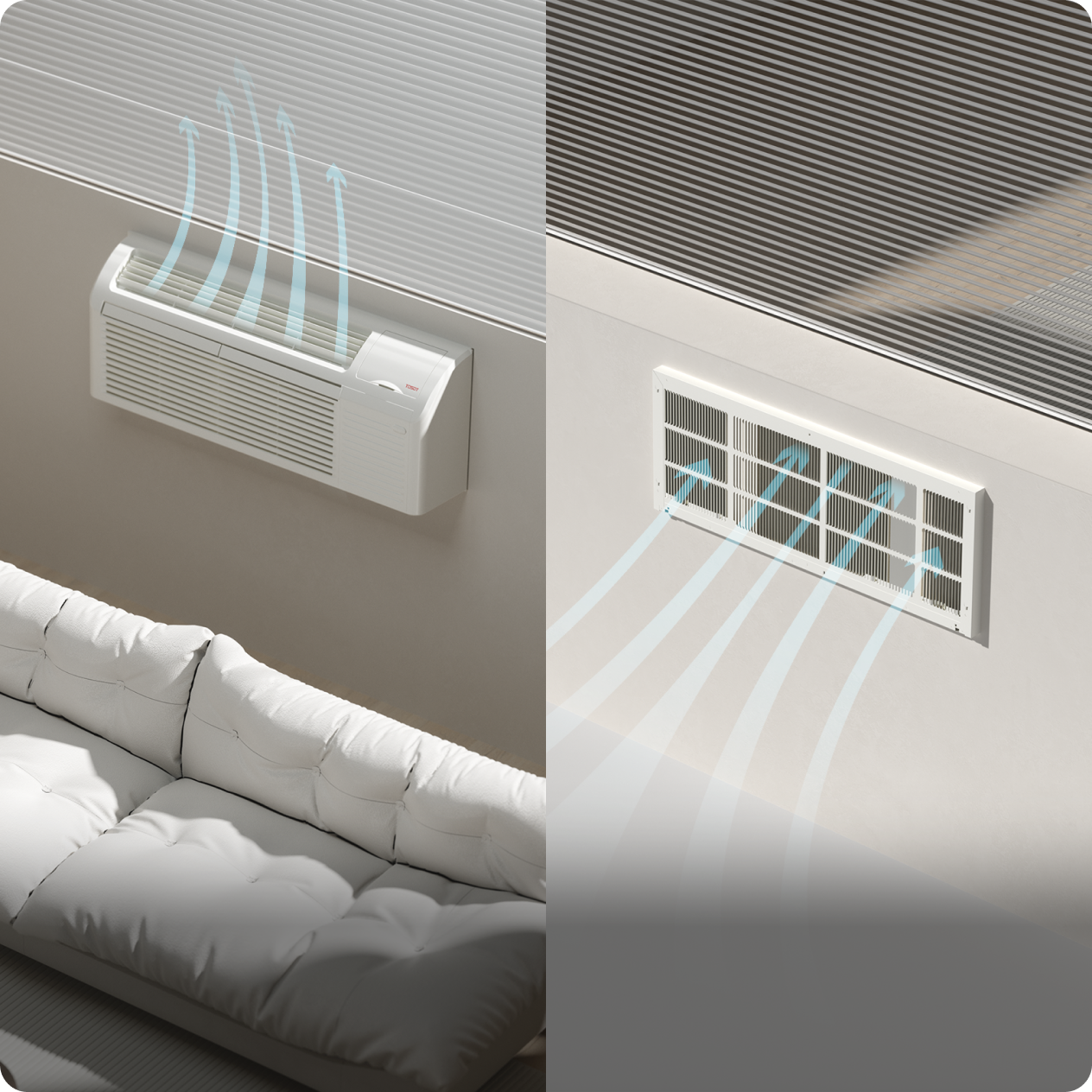

Ventilation Function

Indoor-outdoor Air Exchange
Easily adjust the ventilation control lever during installation to enable indoor-outdoor air exchange for improved air quality. Note that using this feature may affect cooling and heating efficiency.
heat pump and electric auxiliary heating

Faster Heating

2 Heating Options
TOSOT packaged terminal air conditioner boasts a 9,400 BTU heating capacity with a 3,500 watt electric heating option.
You can activate either the Heat Pump or Electric Auxiliary Heating using DIP switches.

For optimal efficiency and heating comfort, enable the heat pump when the temperature is above 20°F and switch to electric auxiliary heating when it drops below 20°F.

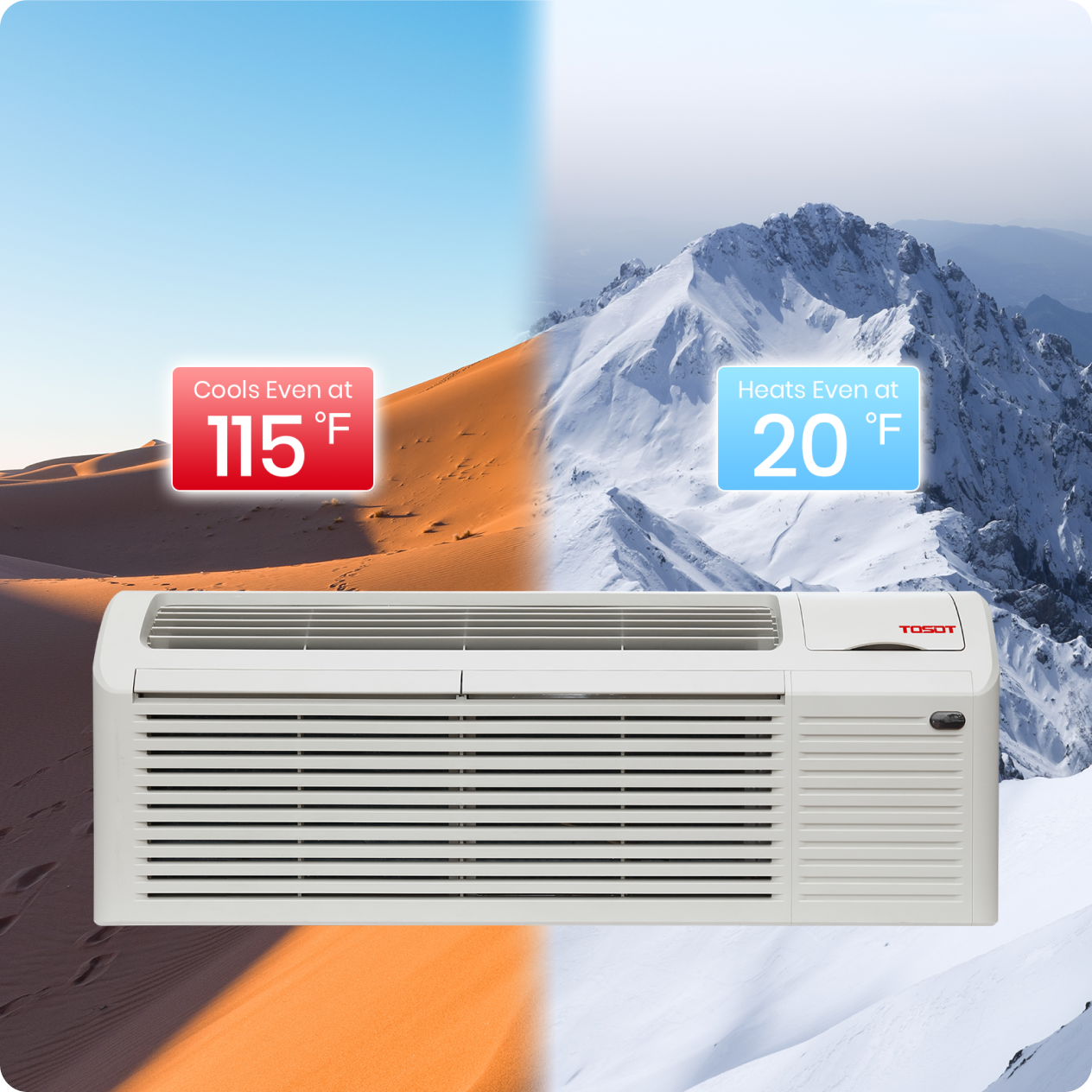

cools at 115F and heats at 20F

Ready for Harsh Conditions

Climate Solution for Most Area
TOSOT PTAC unit operates efficiently from 20℉ to 115℉. The coated outdoor coils resist corrosion, and freeze protection features ensure reliable operation even in extreme weather.

Auto Restart

Remembers and restores your previous settings automatically after a power outage for continuous comfort.

Low Voltage Startup

Safely starts even when voltage is below standard levels.

Self-Diagnosis

The diagnostic code will flash on the status LED (visible with the front panel removed), while major issues cause the unit to shut down and display a malfunction code.

Specification

Technical Data

Model Number TST-PTAC-9
Style Packaged Terminal Air Conditioner
Power Supply (V-Ph-Hz) AC 203 / 230 V, 1 Ph, 60 Hz
EER (Btu/h)/W 13.2
COP (Btu/h)/W 13.4
Rated Cooling Current (A) 6.7
Cooling Power Input (W) 740
Rated Heating Current (A) 5.2
Heating Power Input (W) 700
Dimensions (WxDxH) (in.) 42.0” x 21.5” x 16.0”
Weights (Lbs) 110.2
Refrigerant Type R32
Warranty 5-Year

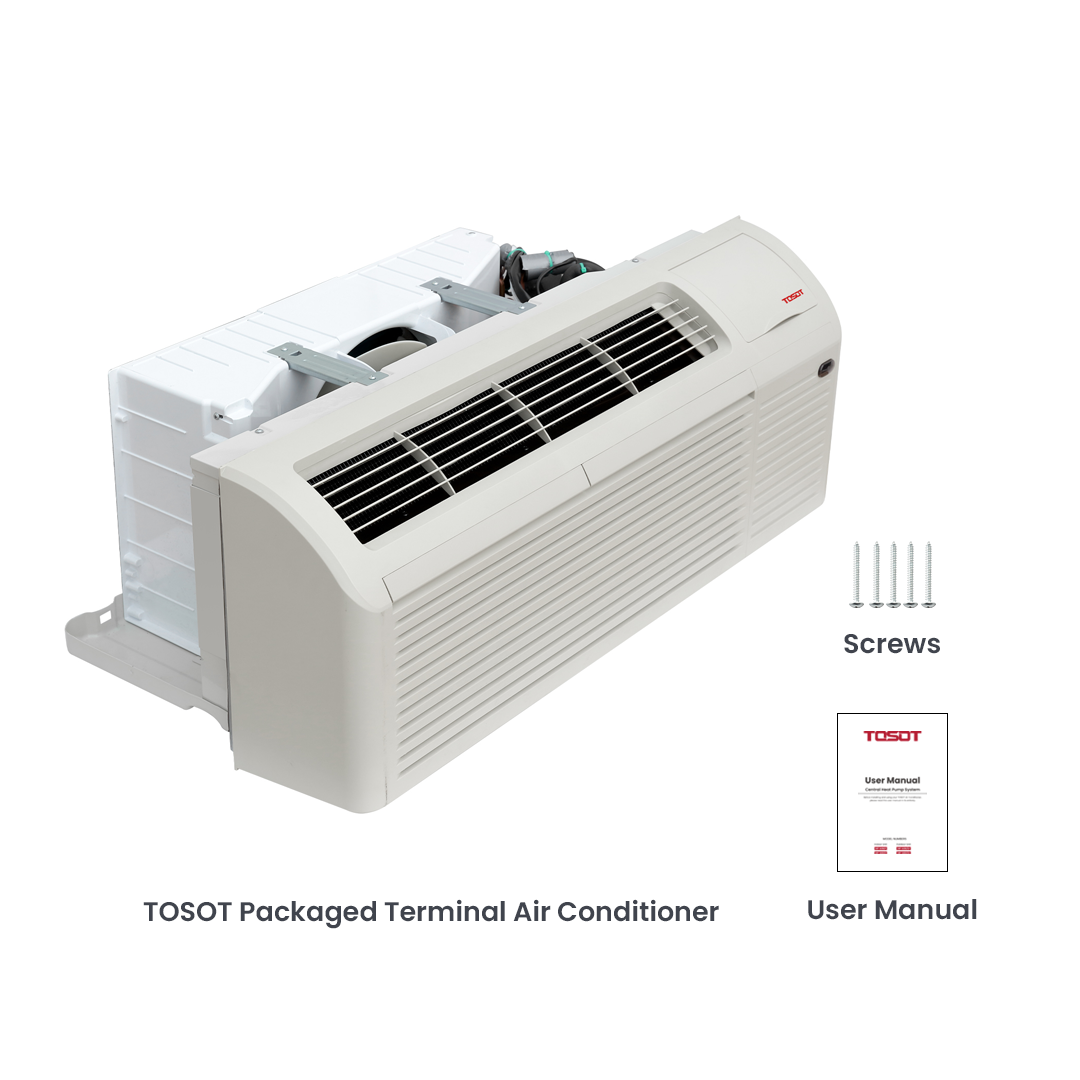

Package List
