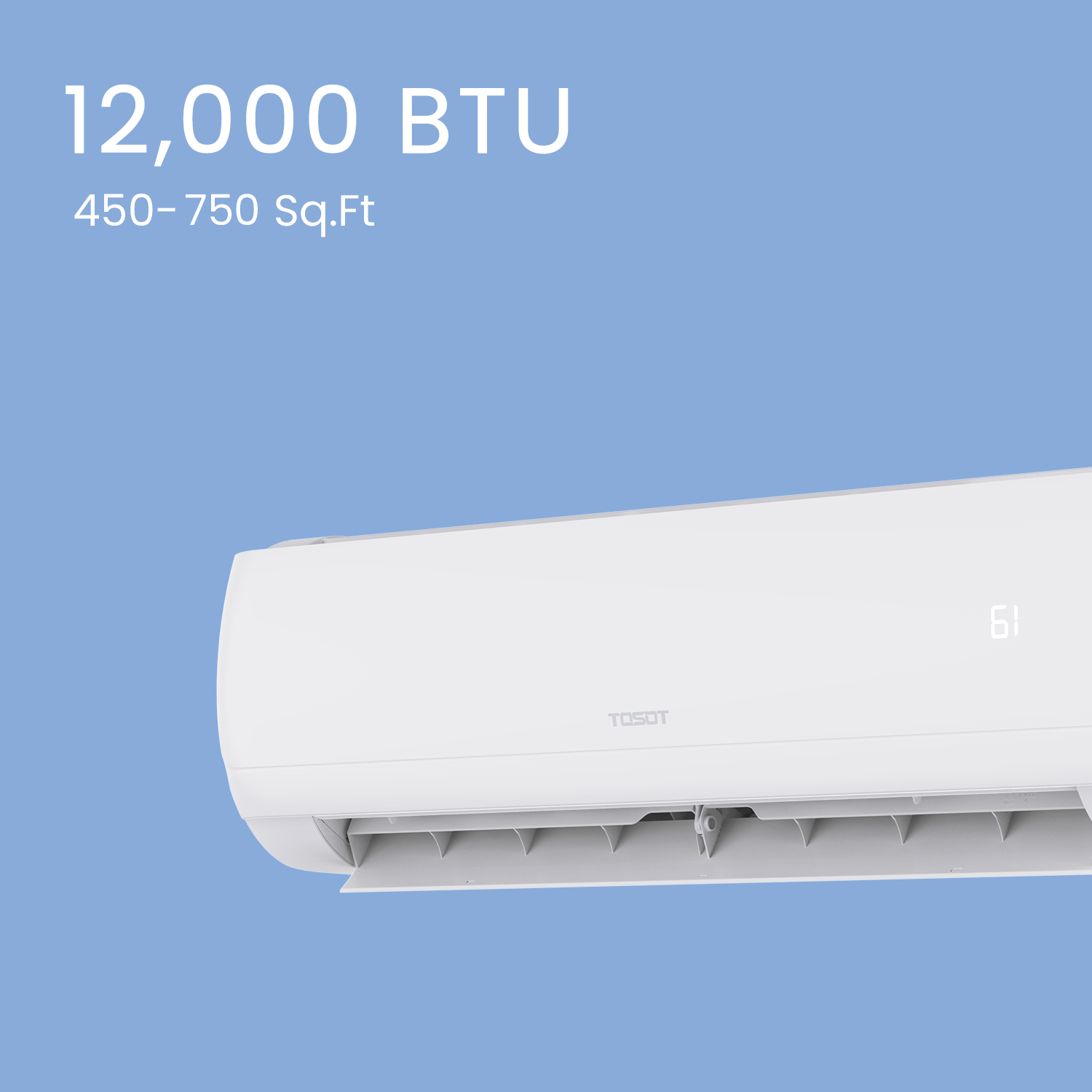

12,000 BTU Mini-Split Heat Pump Air Conditioner-230V

Regular price $1,099.99
Sale price $1,099.99 Regular price

SKU: TST-SU-MUSE-12K230-WF

Key Features:

  • For spaces up to 750 sq. ft
  • 20 SEER2 high-efficiency air conditioner
  • Built-in heat pump
  • Noise level: 44/39/35/30 decibels
  • WiFi-Enabled
  • R410A pre-charged
  • 5-Year warranty for the whole unit

🛠️Now offering installation services in Texas and Washington State. To request service and pricing, please fill out the HVAC Installation Service Form

View full details

What Our Customers Say

  • Features
  • Tech Specs
  • Reviews
  • Manuals
  • Related Video

➡️Download/View the complete technical sheets.



PERFORMANCE

  • EER(Btu/h)/w: 11.30
  • COP(Btu/h)/w: 12.10
  • SEER: 20(SEER) 20(SEER2)
  • HSPF: 10(HSPF) 8.5(HSPF2)
  • Dehumidification (Pts/hr): 2.96
  • Est. Cooling Area (Sq. Ft.): 650
  • Amps: 7.01
  • Watts: 1450
  • Min. Current (MCA) (A): 9
  • Temperature Range (°F): 61-86
  • Noise Levell (SH/H/M/L): 44/39/35/30 decibels

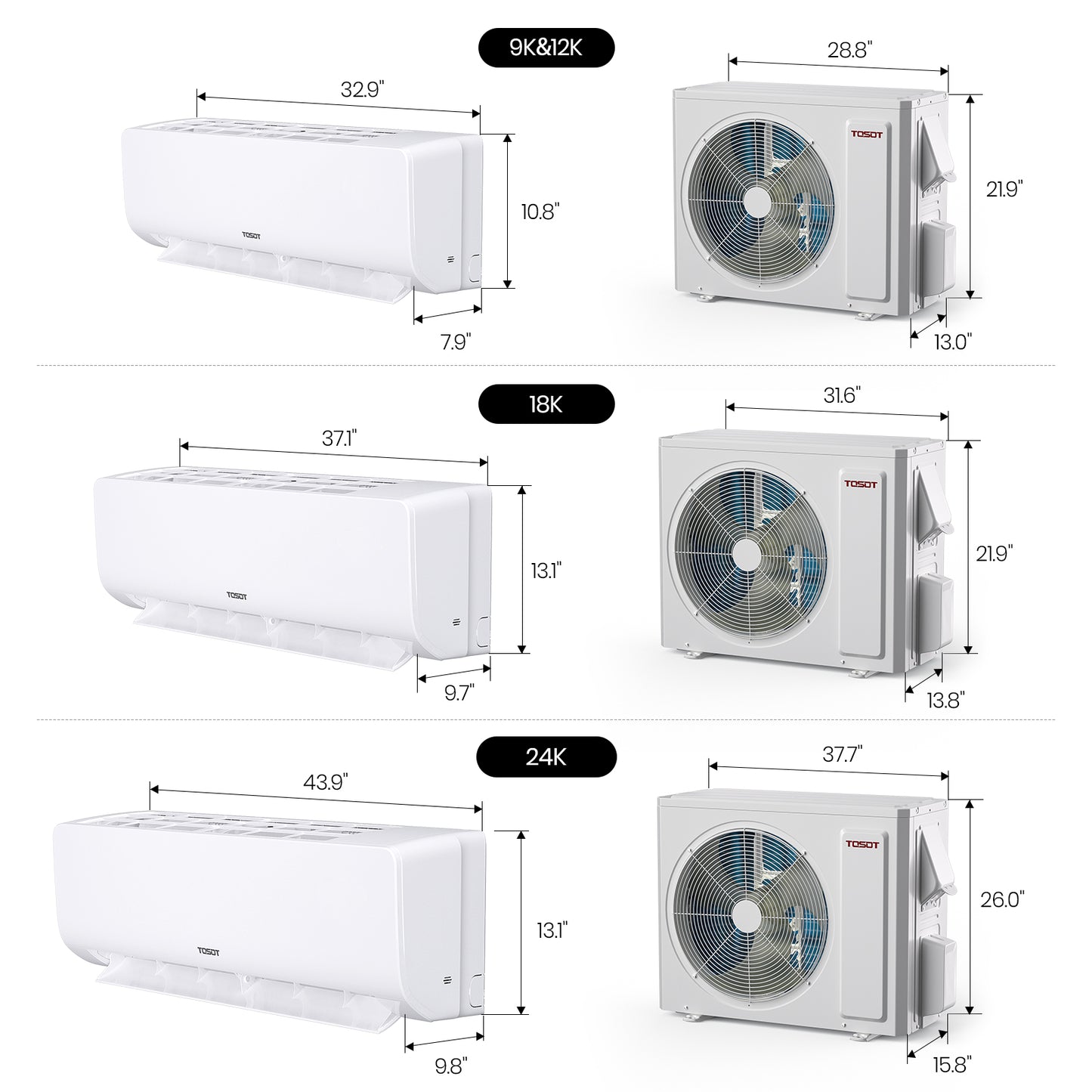

DIMENSIONS & WEIGHTS

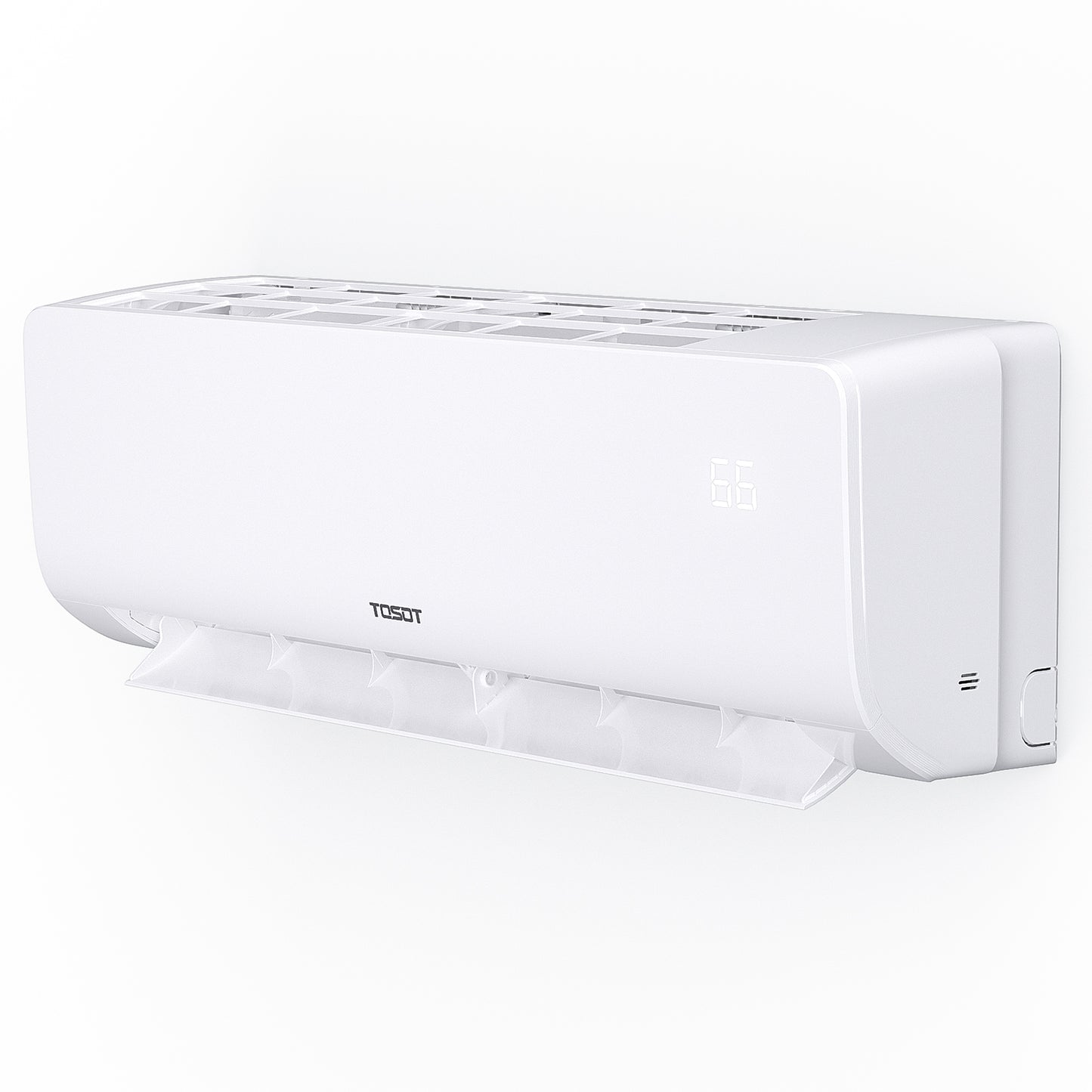

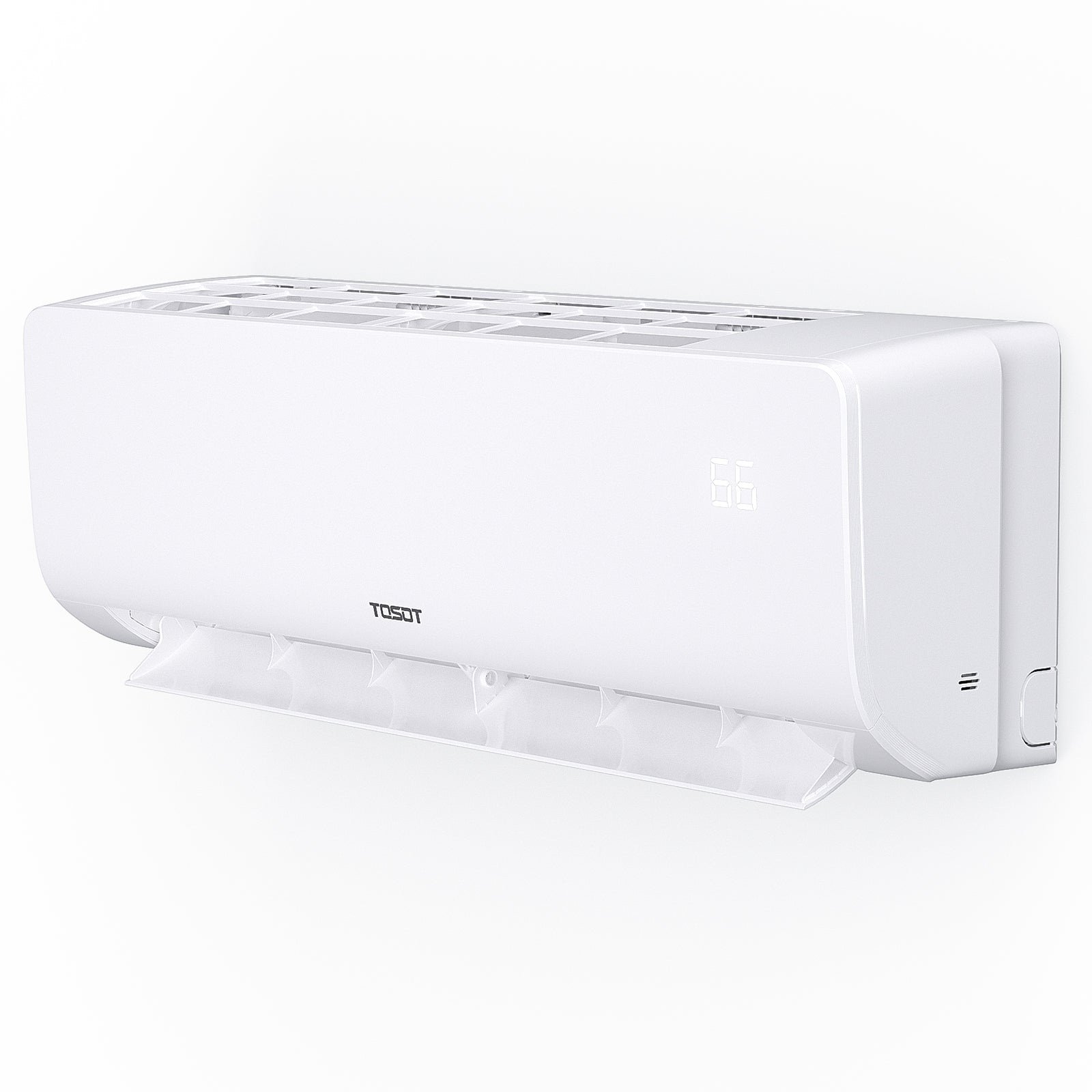

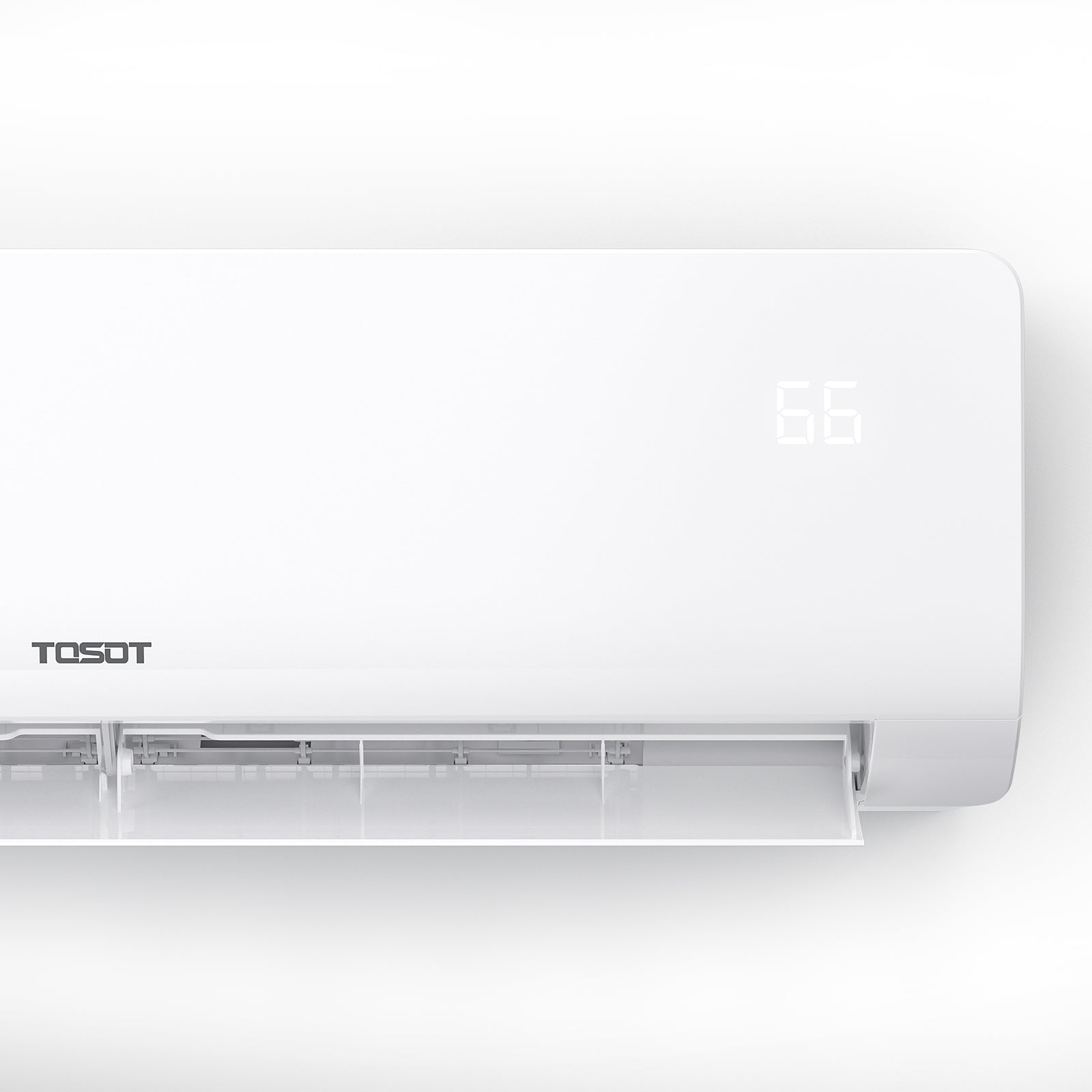

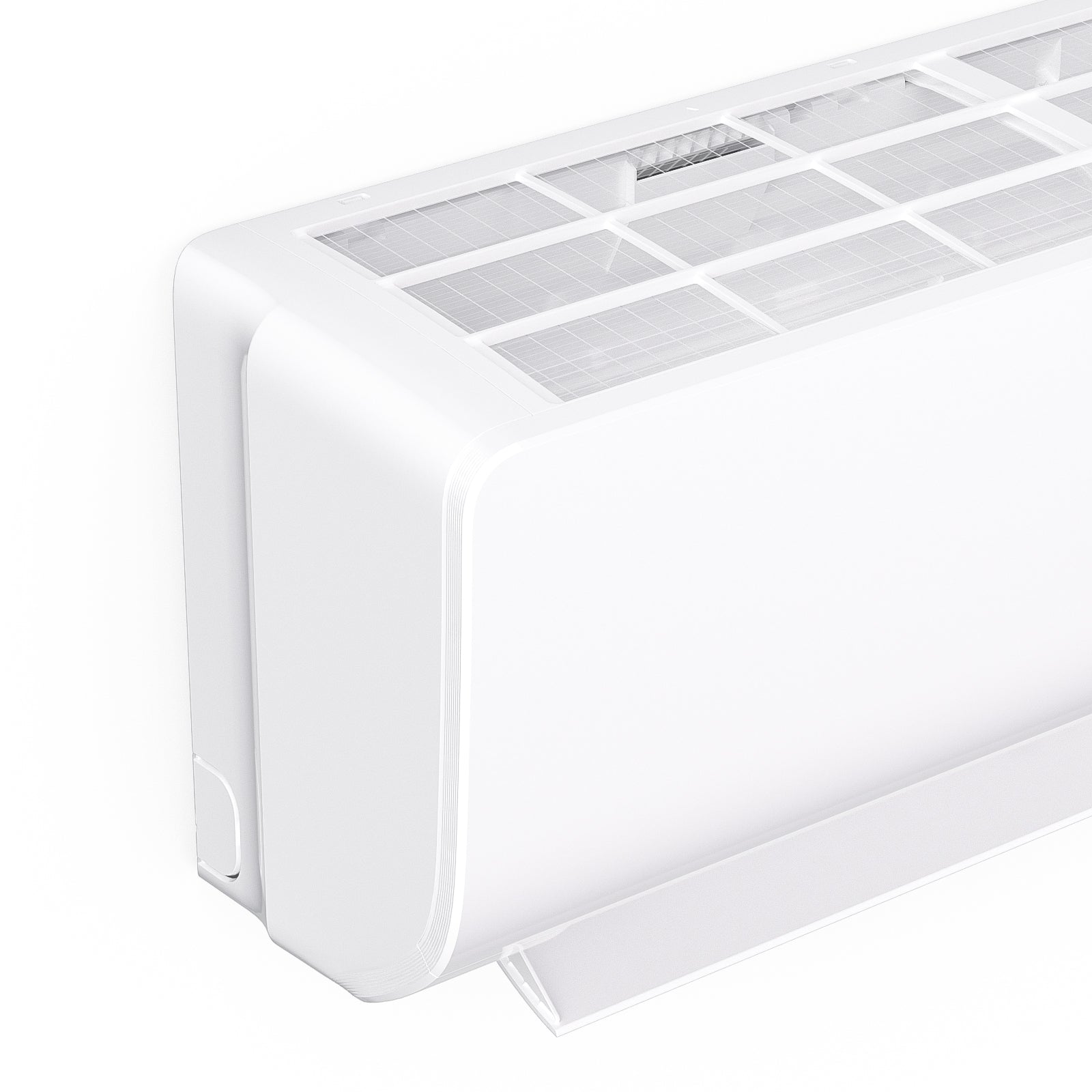

Indoor Unit

  • Approximate Shipping Weight (lbs): 27.6
  • Approximate Net Weight (lbs): 23.2
  • Shipping Dimensions (W×H×D) (inches): 37.32 × 14.37 × 11.38
  • Unit Dimensions (W×H×D) (inches): 35.2 × 11.5 × 8.3

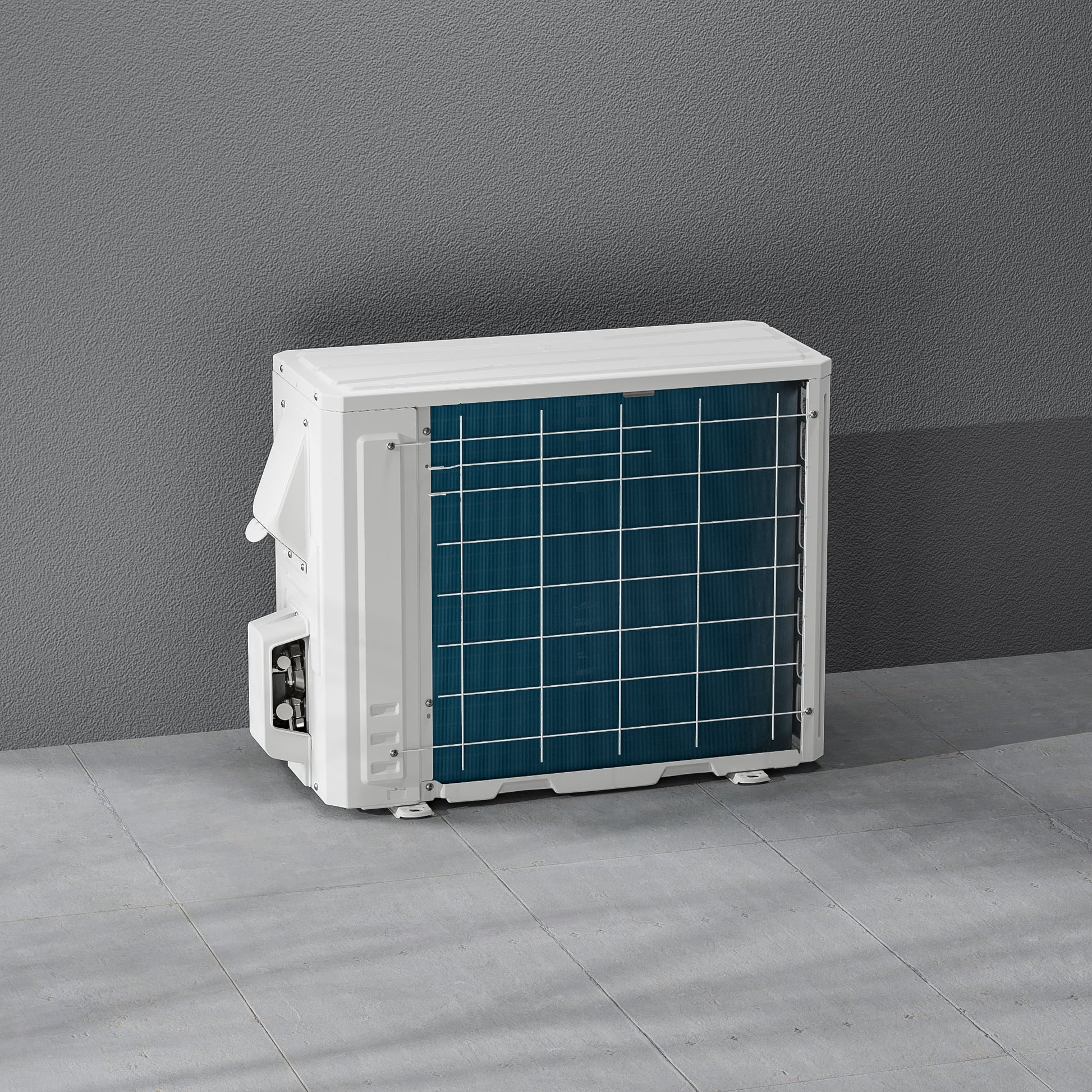

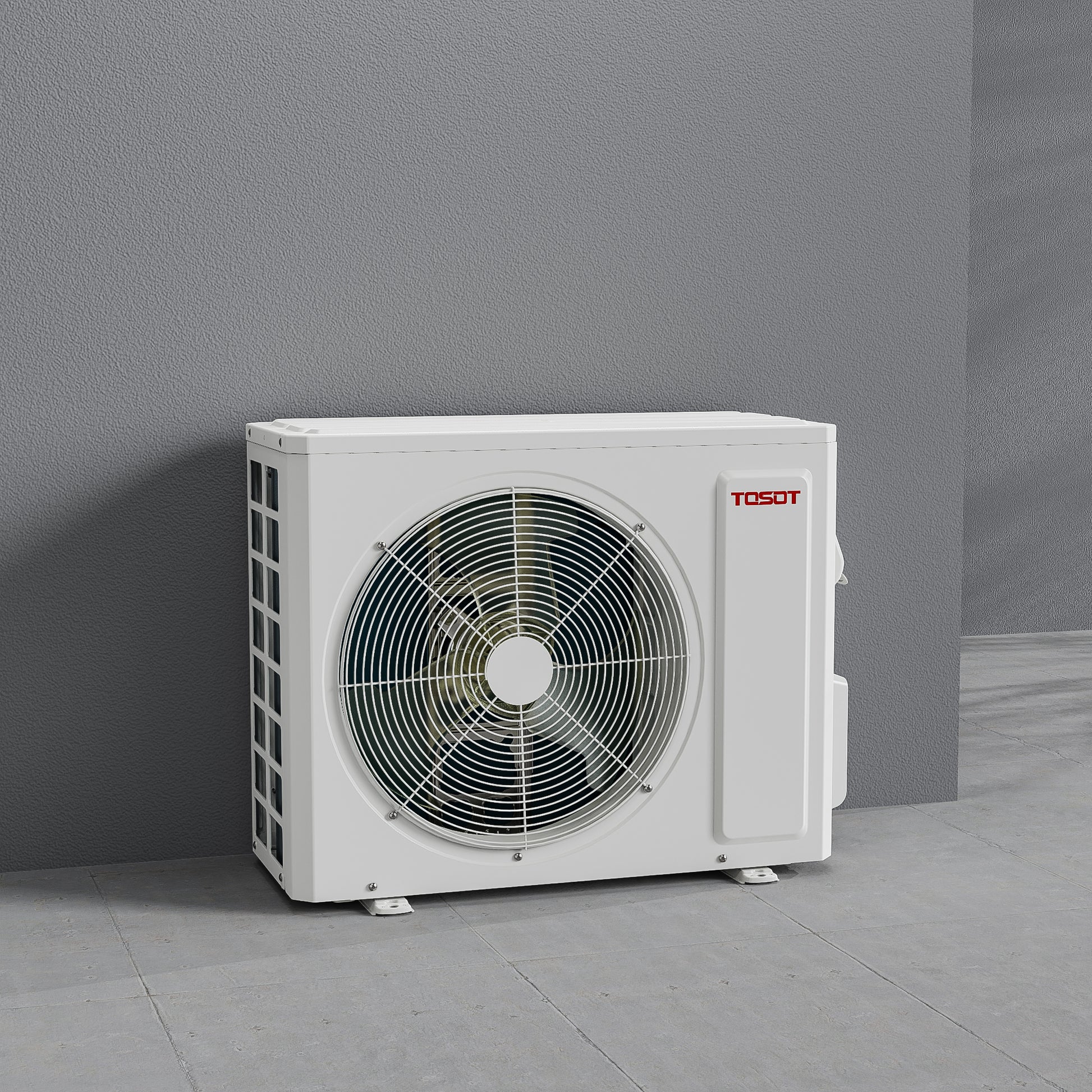

Outdoor Unit

  • Approximate Shipping Weight (lbs): 67.3
  • Approximate Net Weight (lbs): 61.7
  • Shipping Dimensions (W×H×D) (inches): 31.3 x 24.2 x 14.8
  • Unit Dimensions (W×H×D) (inches): 28.8 x 21.9 x 13

Line Set Length

  • Copper Line Set(ft): 16
  • Signal Cable(ft): 19
  • Power Cord(ft):19

DIY Mini Split Install By LRN2DIY

I saved $4,200 installing a mini split AC myself By See Jane Drill

How To Install A Mini Split AC The Right Way By The Handyman

TOSOT Mini-Split Installation [Electrical Emphasis] By BrettleyBuilt

Inverter Technology
High Efficiency
Quiet Operations
WiFi Control
4-in-1 Comfort
5 Years Standard Warranty
inverter system vs non-inverter system inverter system vs non-inverter system inverter system vs non-inverter system

More Efficient, Stable Cooling

What and Why Inverter?

Advanced inverter technology will adjust the running speed of the compressor to achieve the set temperature without wasteful cycling. TOSOT inverter technology has less power loss, lower noise, and saves more energy. The unit also won’t wake you up at night by constantly turning the compressor on and off.

Reduces Energy Use by 50% to Save Money

AHRI Certified

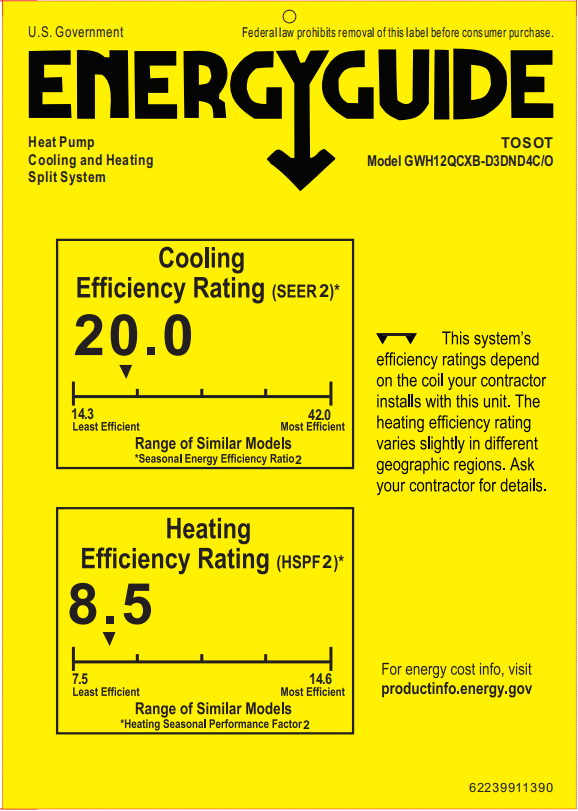

The higher the SEER2, the better the energy performance. Rated at 20 SEER2, the Muse series split AC is estimated to lower energy costs up to 50% per year, compared to standard 10 SEER units. This model is perfect for anyone looking for an all-season AC/heater combo for their home or business.

◆Cooling Savings ◆

10 SEER VS. 20 SEER2

◆Annual Energy Cost Only $104

*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.

Control Your Devices

    No more missing remote. Control your device any time from your phone.

    *Control page may vary due to different app versions or devices.

    works with amazon alexa
    works with google home
    Advance Compressor

    Advance Compressor

    Durability By Design

    The advanced technology that drives the compressor still achieves stable performance under extreme weather conditions. Cools your room at high 122℉ temperatures while still providing warmth at temperatures down to -13℉.
    cools even at 122℉, heats even at -13℉
    Advance Compressor

    Enjoy Tranquility in Your Home

    The noise level of the indoor unit is only 24 dB, bringing you back to complete silence and keeping the noise of the compressor entirely out of your room. Your comfort will no longer be interrupted by a loud compressor.

    5 Year Standard Warranty for the Whole Unit

    We’ve Got Your Back

    The 5-year warranty covers both the compressor and other parts of your unit. With over 30 years of manufacturing experience in the AC industry, we always strive to provide the highest quality product to all our customers.
    30 years manufacturing experience; inverter;inverter technology;ISO 9001 quality management system certificat;R410a green refrigerant; ETL verified; AHRI certified 30 years manufacturing experience; inverter;inverter technology;ISO 9001 quality management system certificat;R410a green refrigerant; ETL verified; AHRI certified

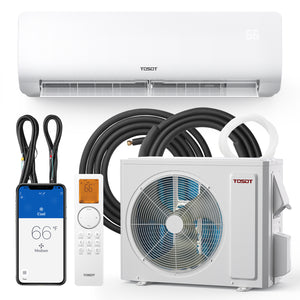

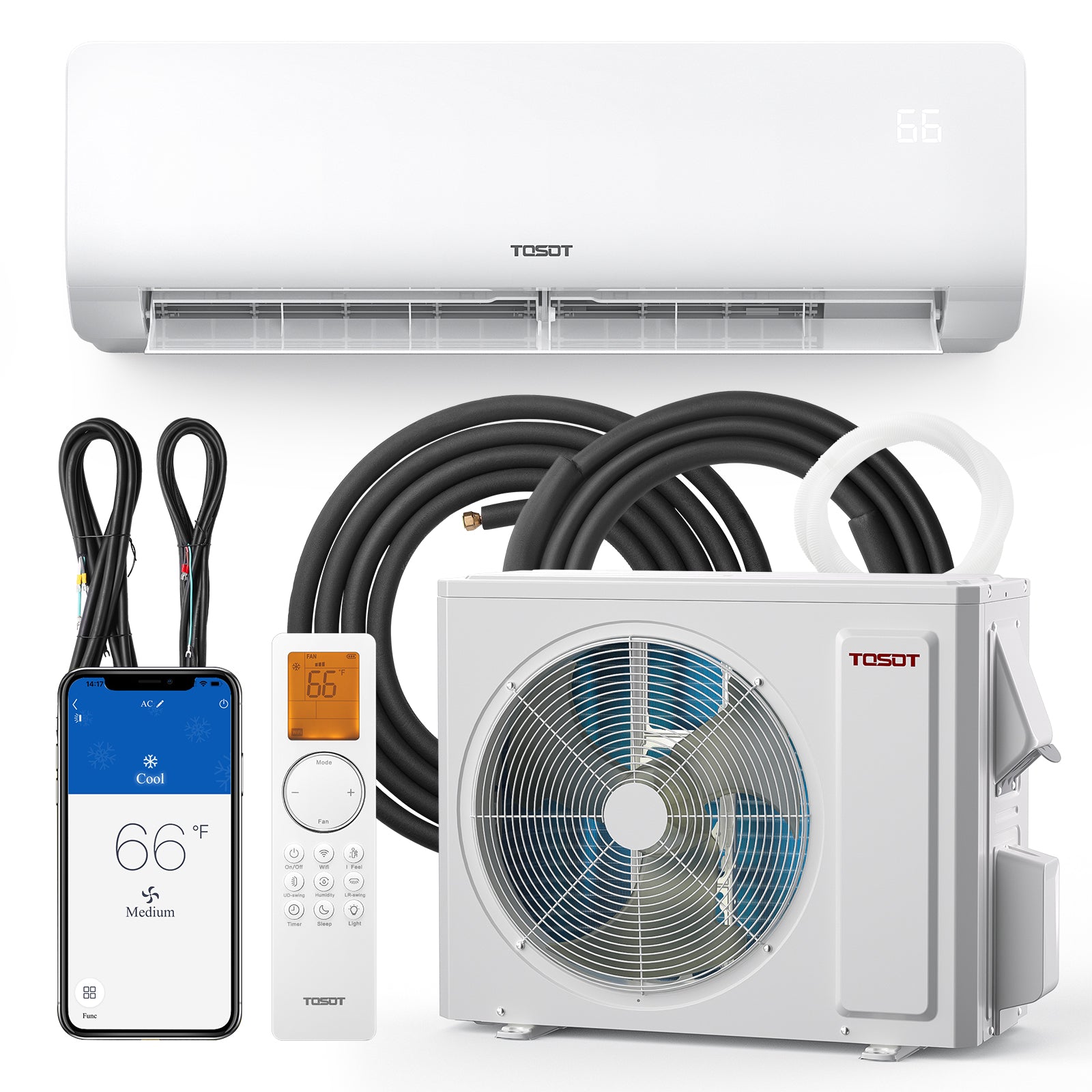

    package list: darin joint; tape; sealing gum; wall cuff; screw and anchor; darin hose; remote control; signal cable; power cord; copper line set accessories list: remote control, darin joint, tape, sealling gum, wall cuff, signal cable, power cord, screw and achnchore, drain hose, copper line set accessories list: remote control, darin joint, tape, sealling gum, wall cuff, signal cable, power cord, screw and achnchore, drain hose, copper line set

    DIY Installation Kit Included

    Ready for Installation

    A basic installation set is included. Additional tools may be required for installation. DIY Installation is possible for ambitious DIYers but if that’s not you, we recommend you contact a local qualified professional to help you out.

    Safe and Fast Delivery

    Upgraded packaging

    Stand up to heavy shocks and crashes. Your product will arrive in good condition
    double-reinforced corners. 5cm thicker cardboard. plastic carrying handles. double-reinforced corners. 5cm thicker cardboard. plastic carrying handles.

    Product Details

    Tosot detail image
    Tosot detail image
    Tosot detail image
    Tosot detail image
    Tosot detail image

    Specification

    Capacity & Performance

    EER(Btu/h)/w 11.3
    SEER2 20
    HSPF2 8.5
    Air Flow (m3/h) 680/620/490/420
    Est. Cooling Area (Sq. Ft.) 750
    Noise Level (SH/H/M/L) 44/39/35/30 decibels

    Electrical Data

    Power Supply 208-230V~60Hz, 1Ph
    Amps 7.0
    Watts 1450

    Indoor Unit

    Net Weight (lbs) 23.1
    Shipping Weight (lbs) 27.6

    Outdoor Unit

    Net Weight (lbs) 61.7
    Shipping Weight (lbs) 67.3
