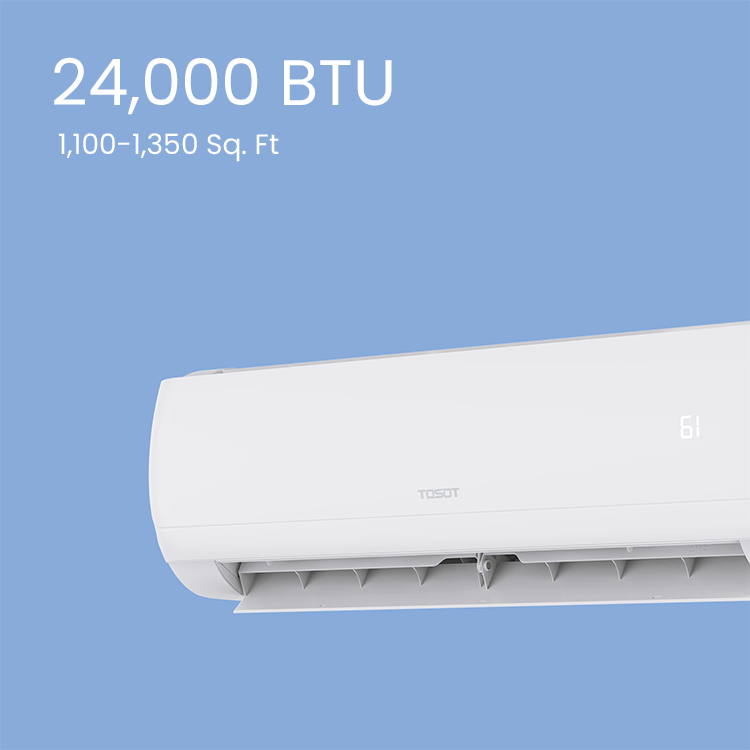

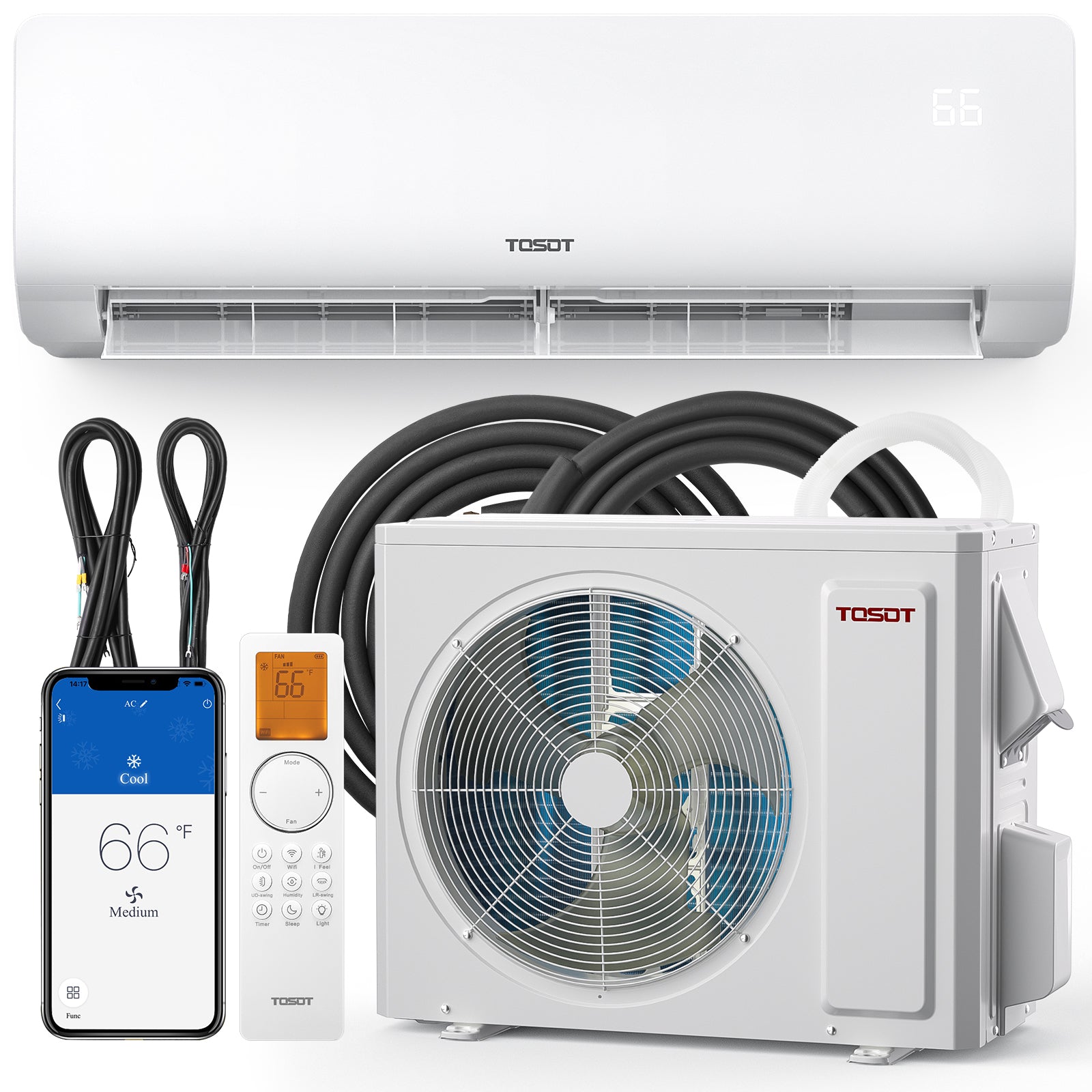

24,000 BTU Mini-Split Heat Pump Air Conditioner-230V

24,000 BTU Mini-Split Heat Pump Air Conditioner-230V

Regular price $1,399.99
Sale price $1,399.99 Regular price $1,799.99

Key Features:

  • For spaces up to 1,350 sq. ft
  • 22 SEER2 high-efficiency air conditioner
  • Built-in heat pump
  • Noise level: 44/39/35/30 decibels
  • WiFi-Enabled
  • 5-Year warranty for the whole unit

WiFi Option

🛠️Now offering installation services in Texas and Washington State. To request service and pricing, please fill out the HVAC Installation Service Form

View full details
  • Features
  • Tech Specs
  • Reviews
  • Manuals
  • Related Video

➡️Download/View the complete technical sheets



  • EER(Btu/h)/w: 12.23
  • COP(Btu/h)/w: 12.46
  • SEER: 22(SEER2) 21(SEER)
  • HSPF: 9.0(HSPF2) 10.0(HSPF)
  • Dehumidification (Pts/hr): 2.96
  • Est. Cooling Area (Sq. Ft.): 1,350
  • Amps: 12
  • Watts: 2650
  • Min. Current (MCA) (A) : 17
  • Temperature Range (°F): 61-86
  • Noise Levell (SH/H/M/L): 52/45/40/37 decibels

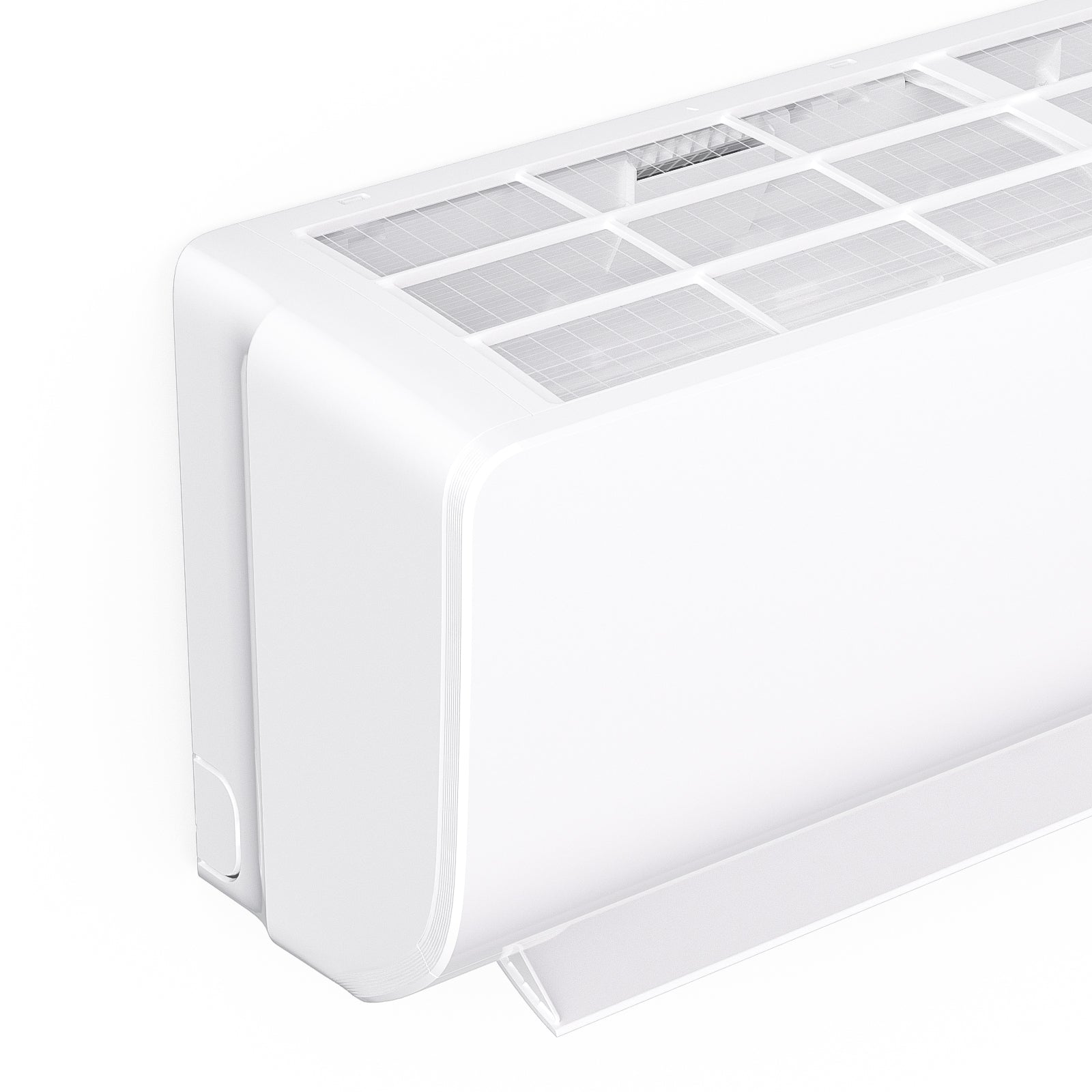

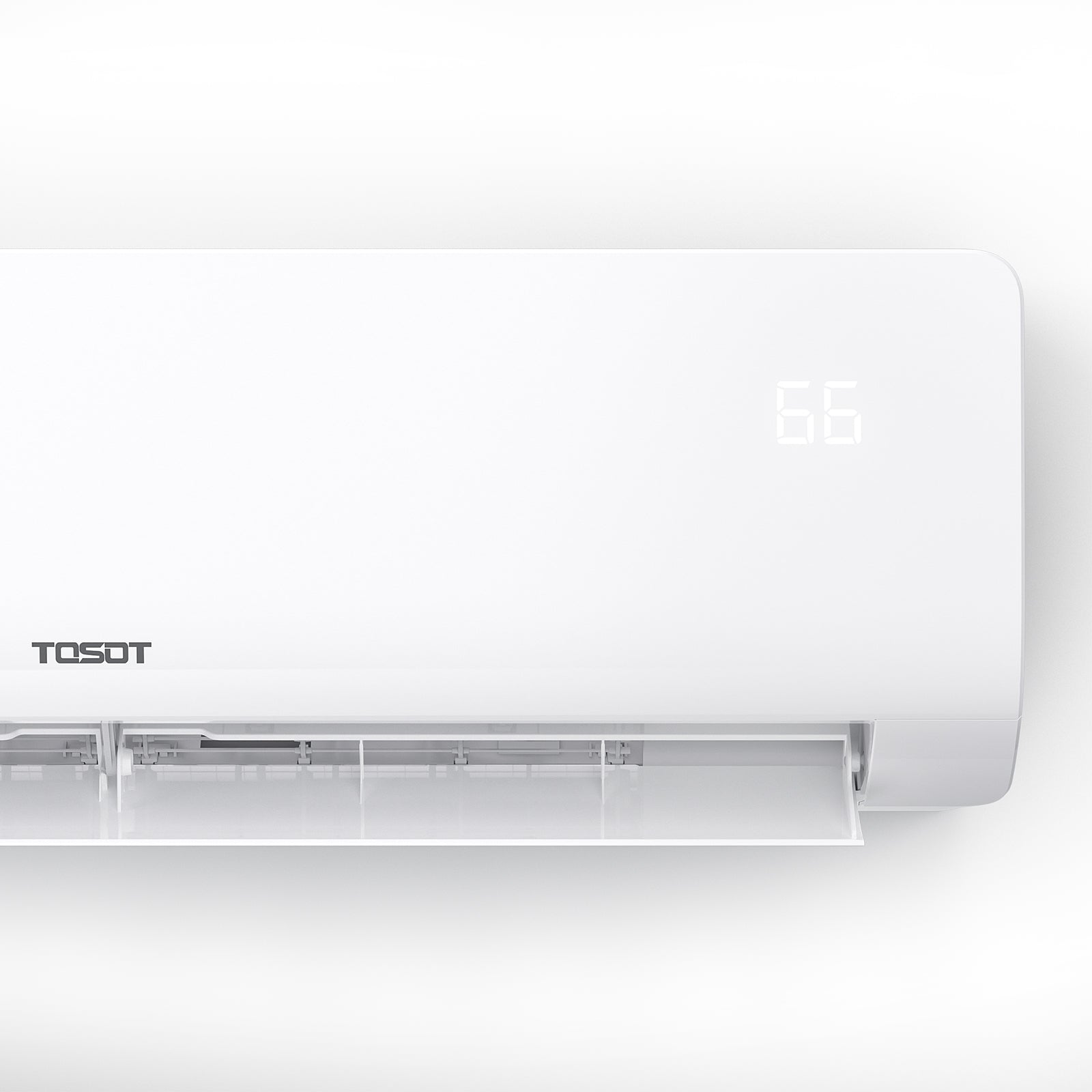

Indoor Unit

  • Approximate Shipping Weight (lbs): 43.0
  • Approximate Net Weight (lbs): 36.4
  • Shipping Dimensions (W×H×D) (inches): 46.3 x 16.0 x 13.1

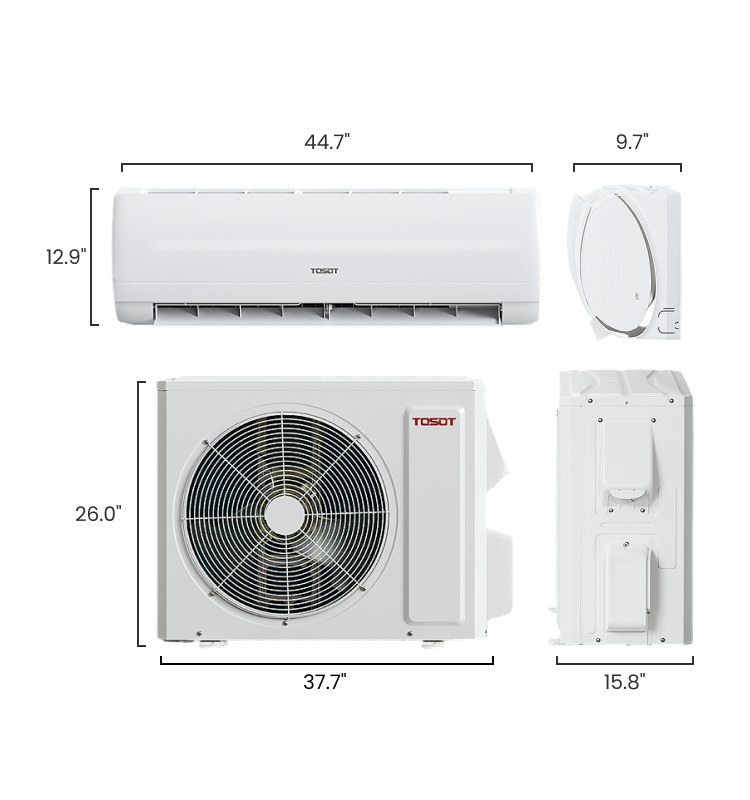

  • Unit Dimensions (W×H×D) (inches): 44.7 x12.9 x9.7

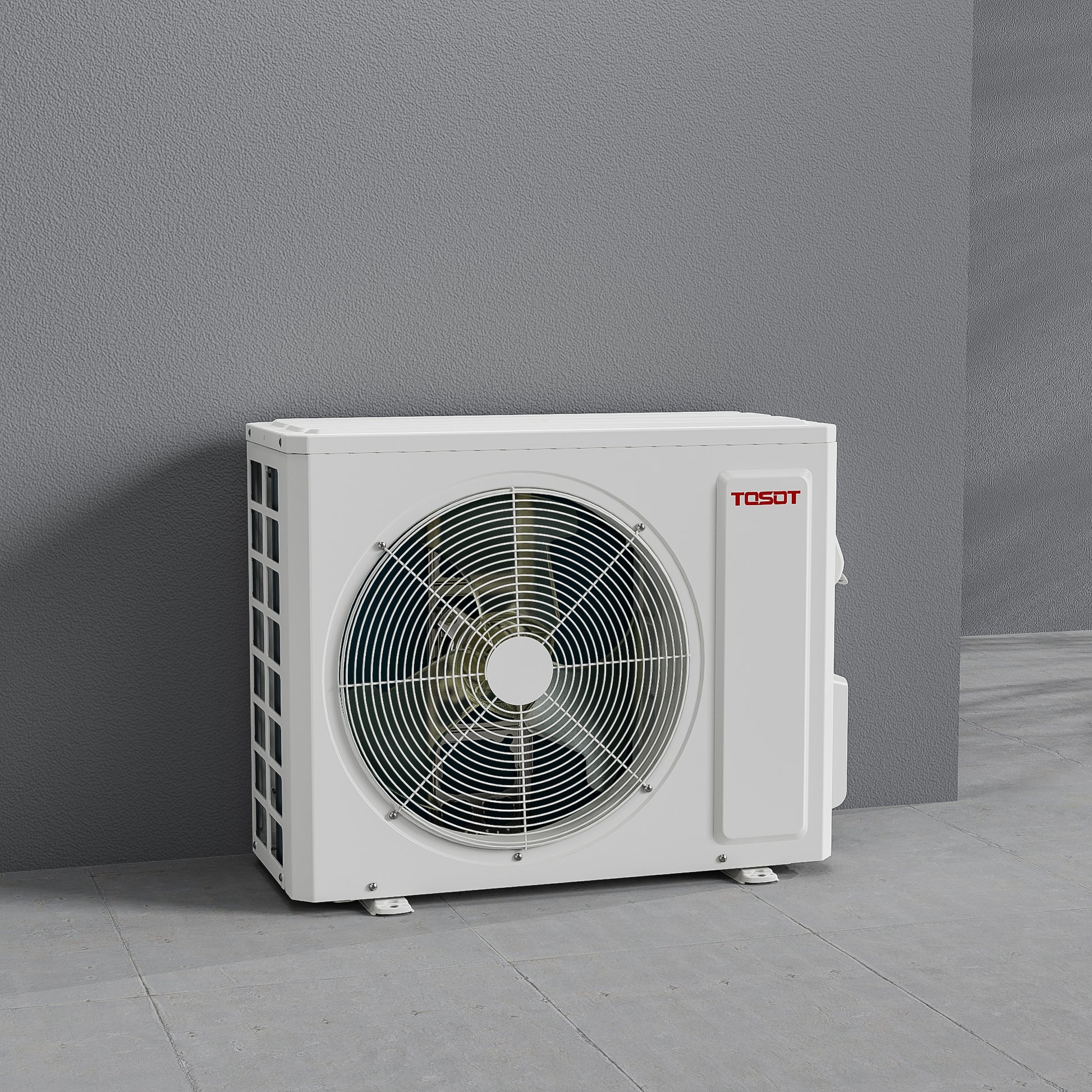

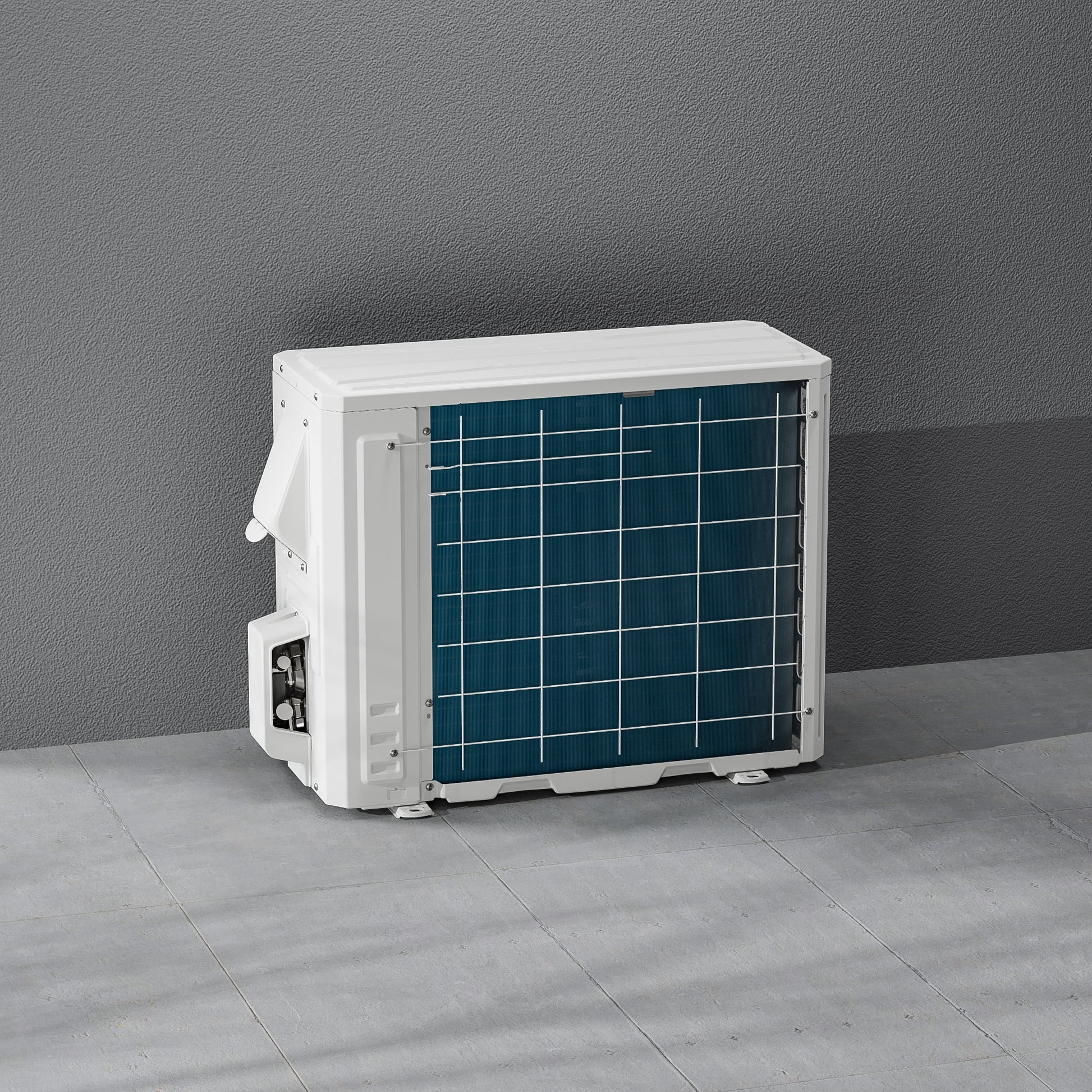

Outdoor Unit

  • Approximate Shipping Weight (lbs): 105.8
  • Approximate Net Weight (lbs): 95.9
  • Shipping Dimensions (W×H×D) (inches): 40.6 x 29.0 x 18.0
  • Unit Dimensions (W×H×D) (inches): 37.7 x 26.0x 15.8

Line Set Length

  • Copper Line Set(ft): 16
  • Signal Cable(ft): 19
  • Power Cord(ft):19

DIY Mini Split Install By LRN2DIY

I saved $4,200 installing a mini split AC myself By See Jane Drill

How To Install A Mini Split AC The Right Way By The Handyman

TOSOT Mini-Split Installation [Electrical Emphasis] By BrettleyBuilt

Inverter Technology
High Efficiency
Quiet Operations
WiFi Control
4-in-1 Comfort
5 Years Standard Warranty

More Efficient, Stable Cooling

What and Why Inverter?

Advanced inverter technology will adjust the running speed of the compressor to achieve the set temperature without wasteful cycling. TOSOT inverter technology has less power loss, lower noise, and saves more energy. The unit also won’t wake you up at night by constantly turning the compressor on and off.

Reduces Energy Use by 55% to Save Money

AHRI Certified

The higher the SEER2, the better the energy performance. Rated at 22 SEER2, the Muse series split AC is estimated to lower energy costs up to 55% per year, compared to standard 10 SEER units. This model is perfect for anyone looking for an all-season AC/heater combo for their home or business.

◆Cooling Savings ◆

10 SEER VS. 22 SEER2

◆Annual Energy Cost Only $394

*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.

Control Your Devices

    No more missing remote. Control your device any time from your phone.

    *Control page may vary due to different app versions or devices.

    Advance Compressor
    Durability By Design
    The advanced technology that drives the compressor still achieves stable performance under extreme weather conditions. Cools your room at high 122℉ temperatures while still providing warmth at temperatures down to -13℉.
    Enjoy Tranquility in Your Home
    The noise level of the indoor unit is only 24 dB, bringing you back to complete silence and keeping the noise of the compressor entirely out of your room. Your comfort will no longer be interrupted by a loud compressor.
    5 Year Standard Warranty for the Whole Unit
    We’ve Got Your Back
    The 5-year warranty covers both the compressor and other parts of your unit. With over 30 years of manufacturing experience in the AC industry, we always strive to provide the highest quality product to all our customers.

    DIY Installation Kit Included

    Ready for Installation

    A basic installation set is included. Additional tools may be required for installation. DIY Installation is possible for ambitious DIYers but if that’s not you, we recommend you contact a local qualified professional to help you out.

    Safe and Fast Delivery
    Upgraded packaging
    Stand up to heavy shocks and crashes. Your product will arrive in good condition

    Product Details


    Capacity & Performance

    EER(Btu/h)/w 12.2
    SEER2 22
    HSPF2 9.0
    Air Flow (m3/h) 1350/1100/950/850
    Est. Cooling Area (Sq. Ft.) 1,350
    Noise Level (SH/H/M/L) 48/45/40/34 decibels

    Electrical Data

    Power Supply 208-230V~60Hz, 1Ph
    Amps 12
    Watts 2650

    Indoor Unit

    Net Weight (lbs) 36.4
    Shipping Weight (lbs) 43.0

    Outdoor Unit

    Net Weight (lbs) 95.9
    Shipping Weight (lbs) 105.8

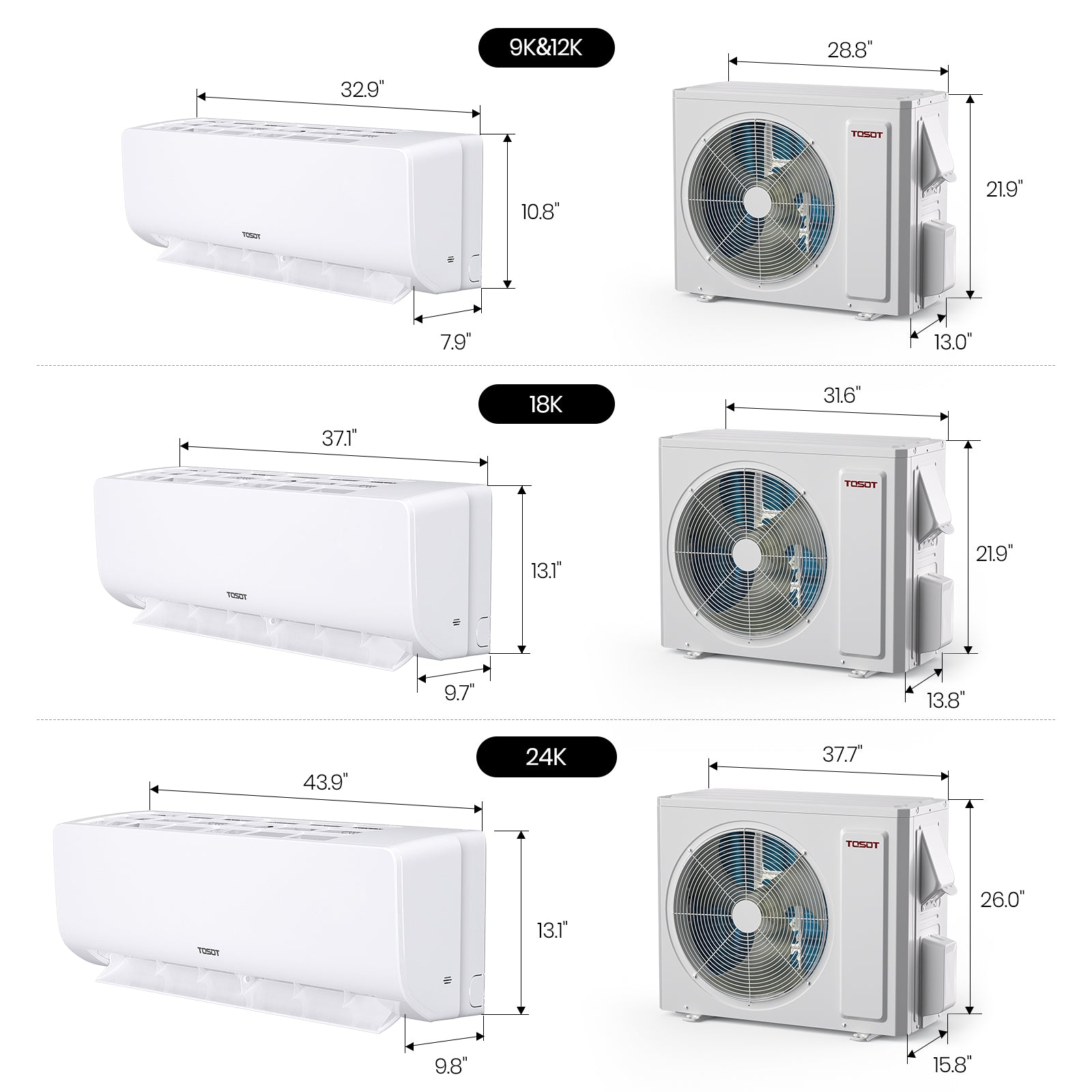

    Dimensions & Weights
