Features

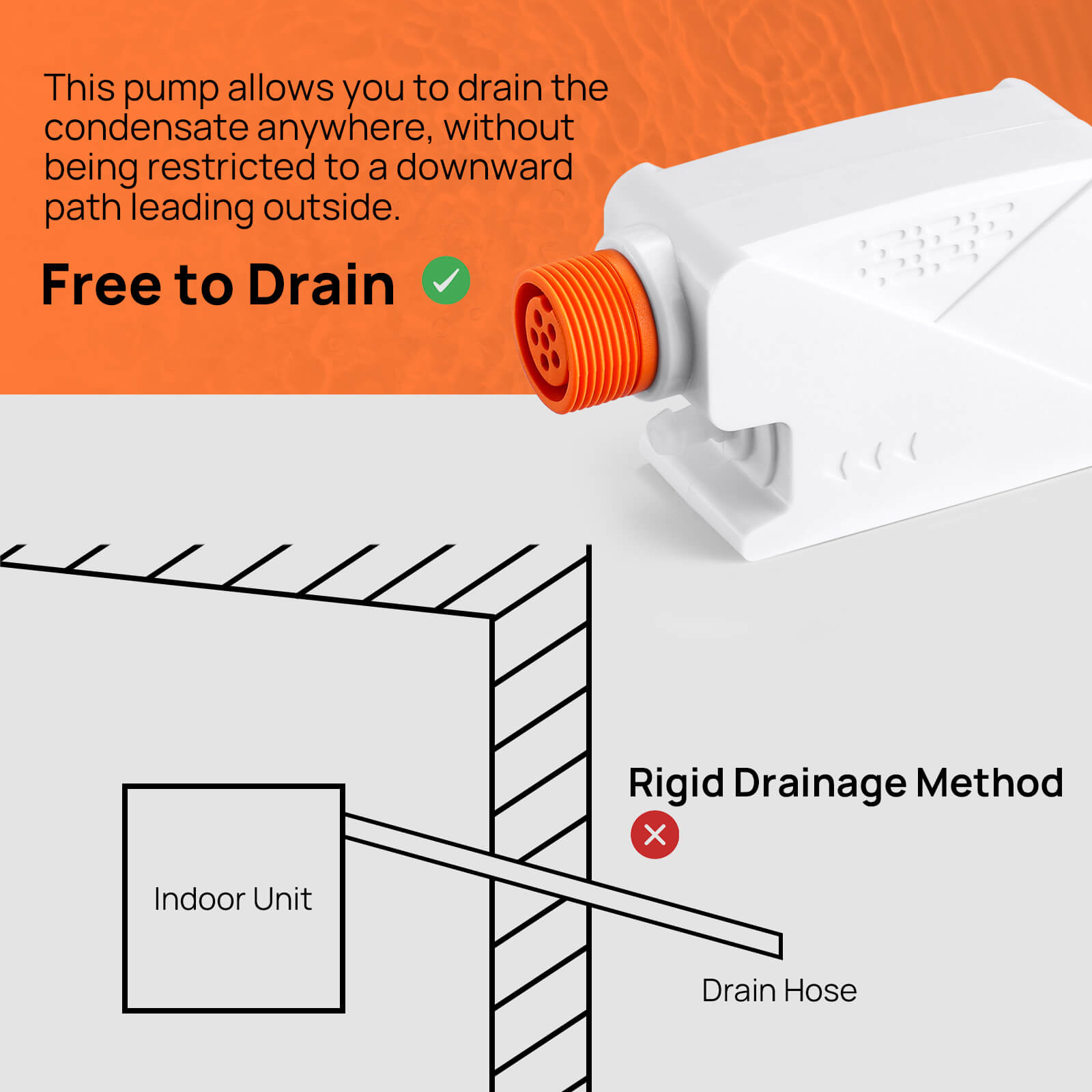

• Free to Drain: This pump allows you to drain the condensate anywhere, without being restricted to a downward path leading outside.

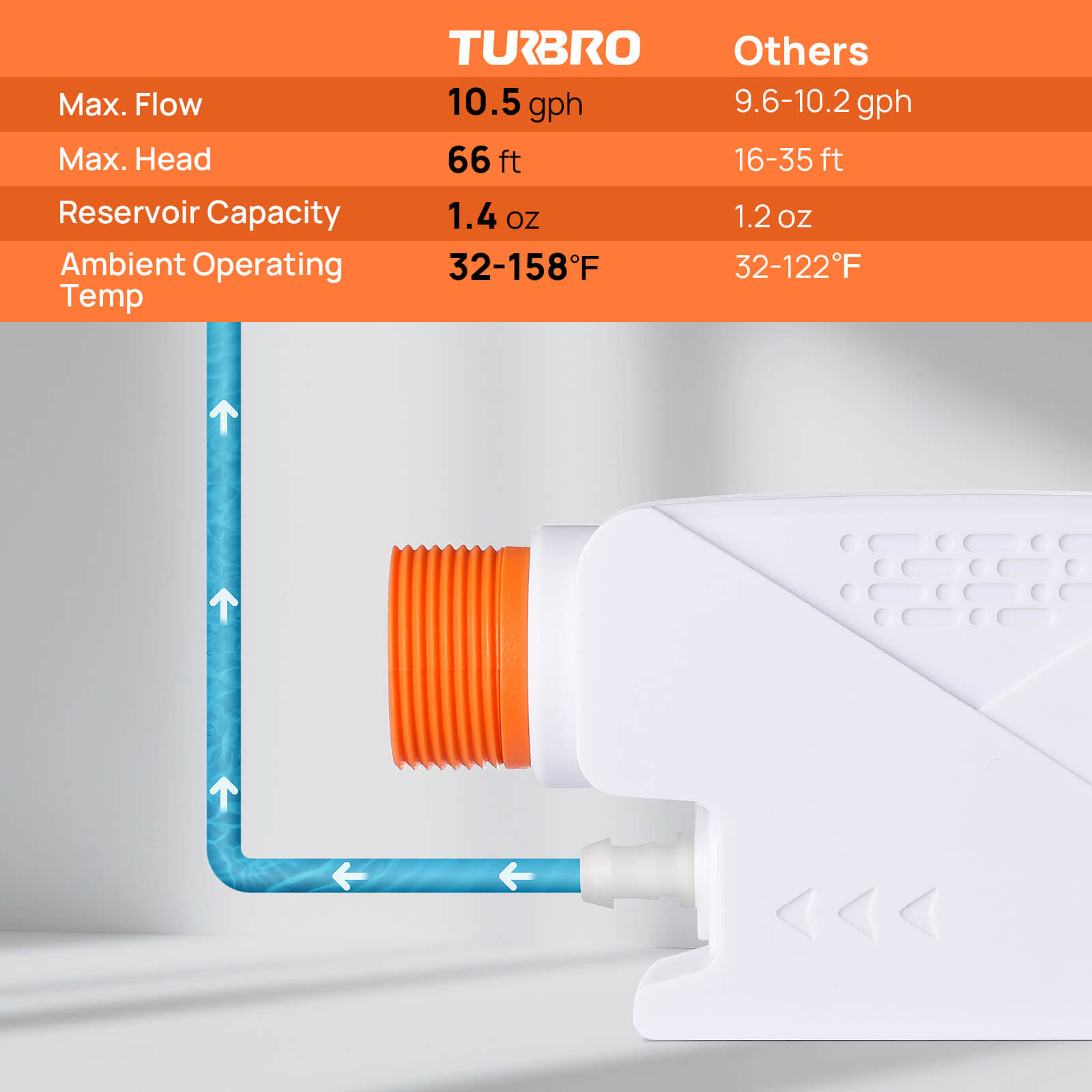

• Quiet, Efficient Operation: With a maximum head of 66 feet, nearly double that of typical competitors, and a 10.5 gallon per hour water removal rate, this unit efficiently and quietly removes water at only 19dB for minimal noise disturbance.

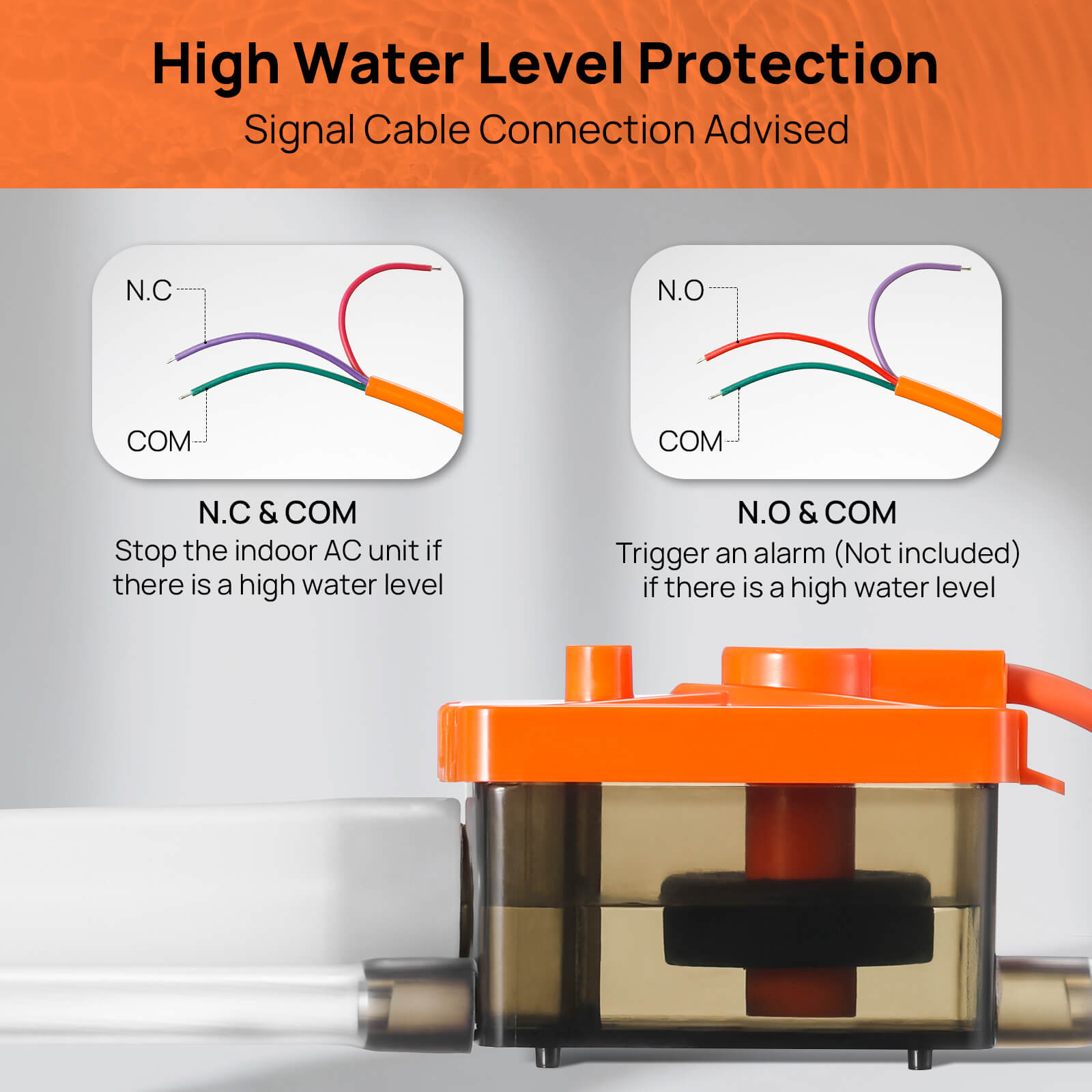

• Safety Detection System: Equipped with a float switch, the pump automatically starts or stops based on the water level in the reservoir to prevent overflow and ensure proper operation. Signal cable connections are recommended for added safety, triggering an alarm (not included) or shutting down the AC unit for peace of mind.

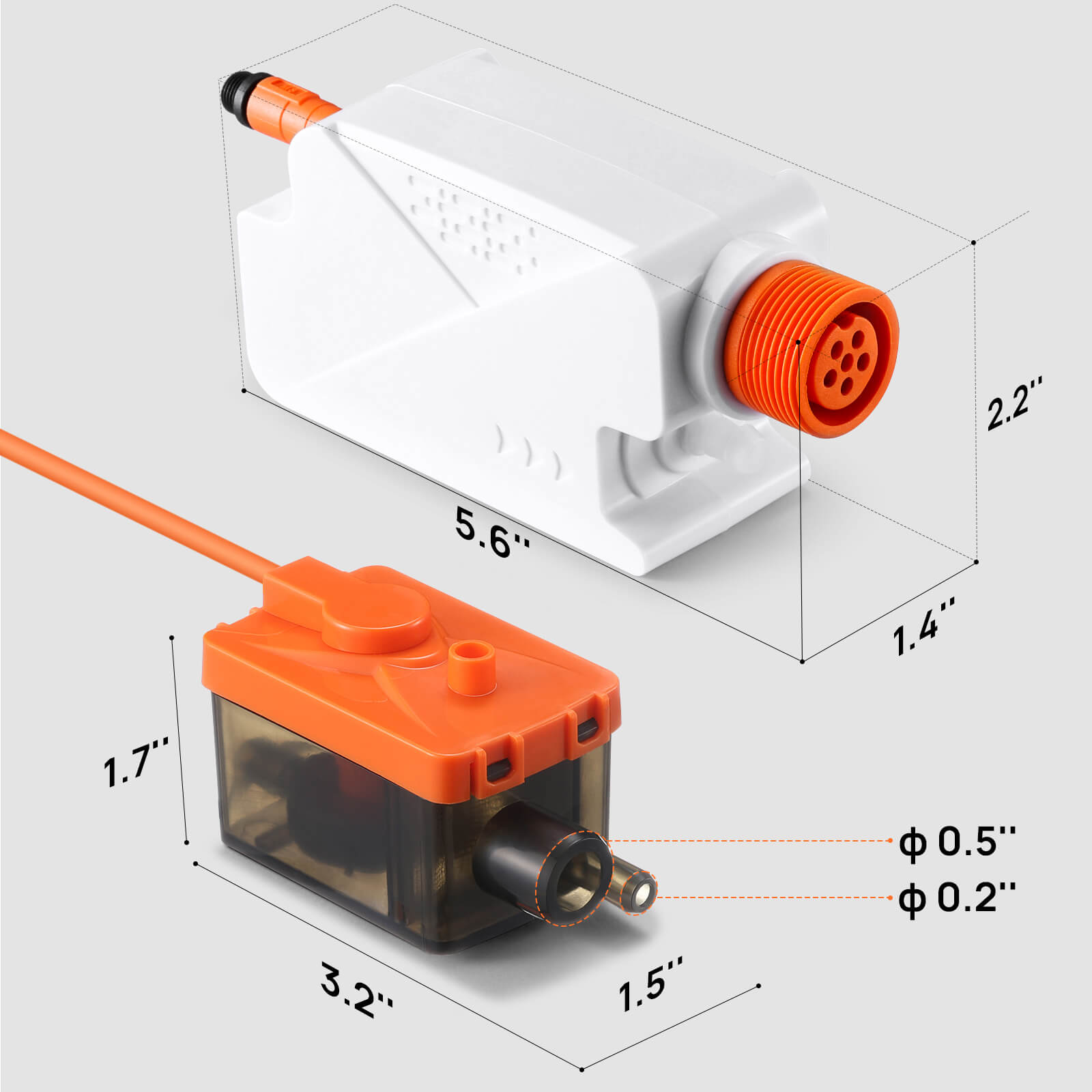

• Flexible Placement: The small footprint of this condednsate pump fits in ceilings, line set covers, or within evaporator units of mini-split systems (space permitting).
• Wide Application: Designed for automatic water drainage in HVAC systems, including mini-split air conditioners, dehumidifiers, furnaces, ice makers, and more.

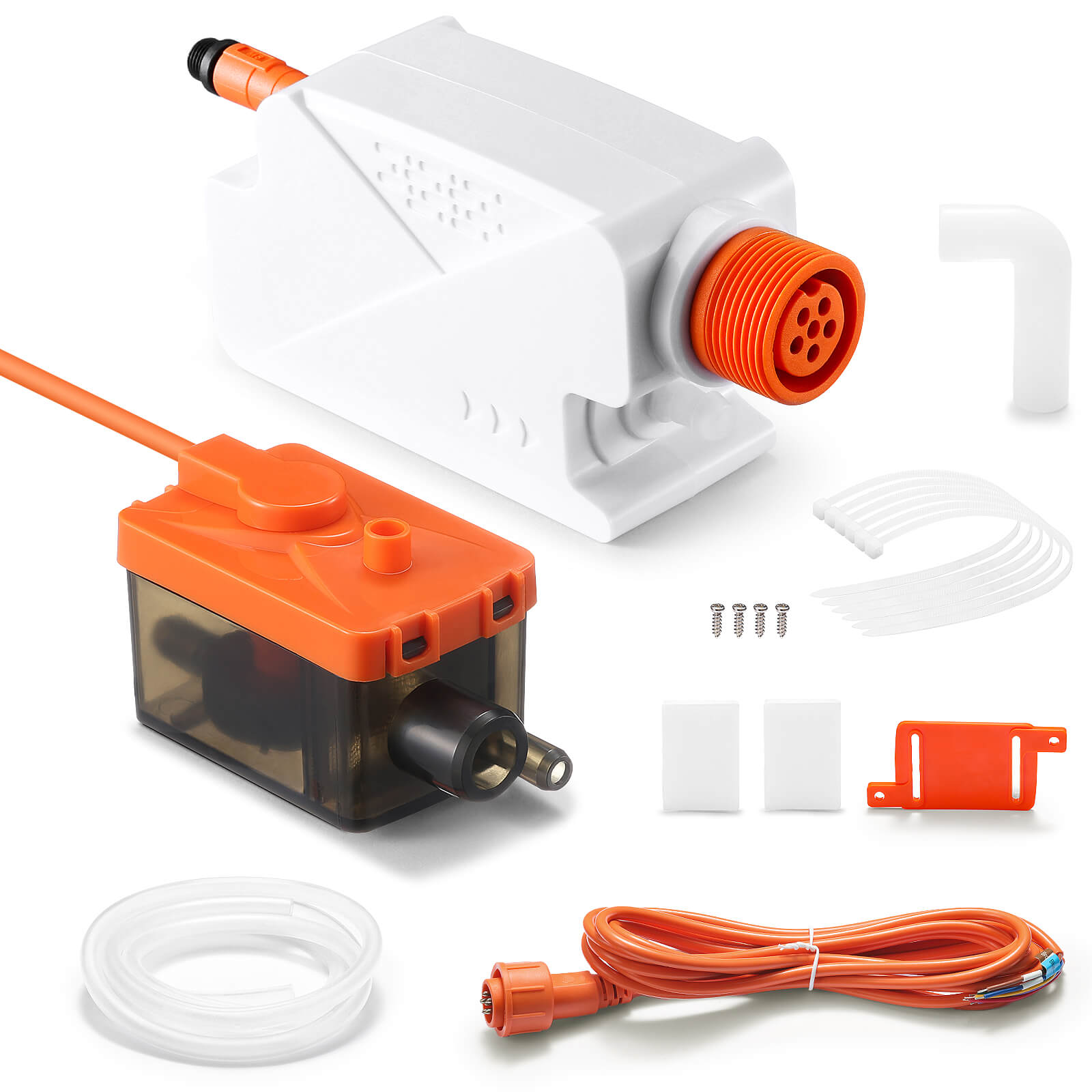

• Easy Installation: Includes a drainage tube (¼” inner diameter, ⅜” outer diameter) for seamless pump-to-reservoir connection, a ½” inner diameter rubber tube for the reservoir inlet, a power cord, Velcro strips, zip ties, a mounting plate, and screws. Note: No water hose is provided for discharging water from the pump.
